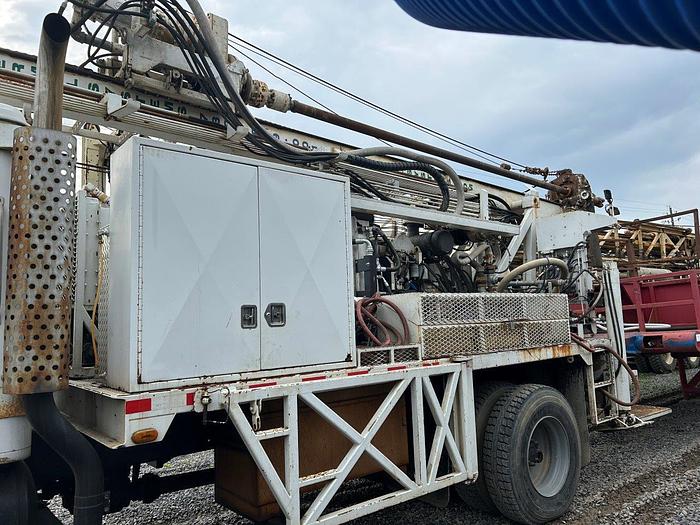

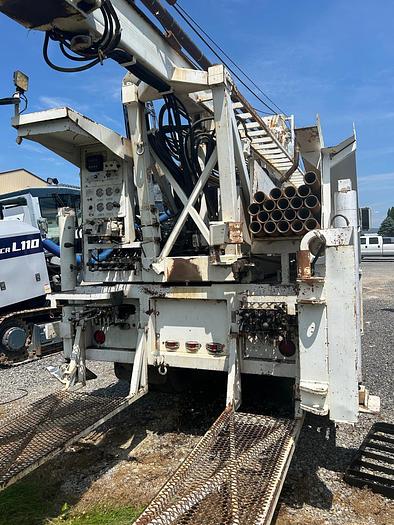

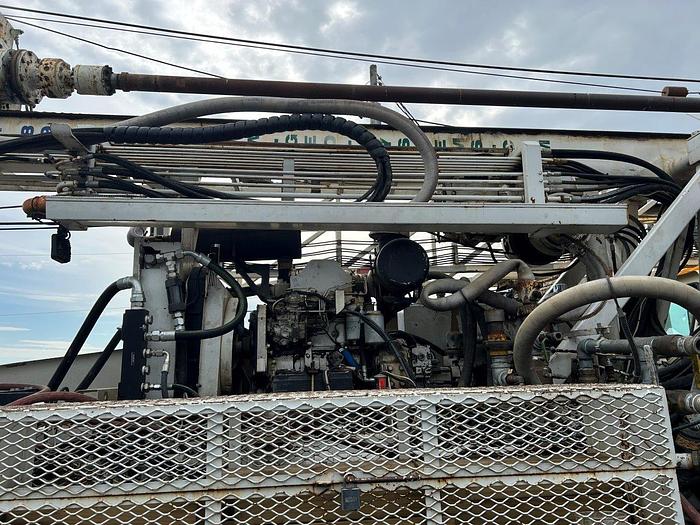

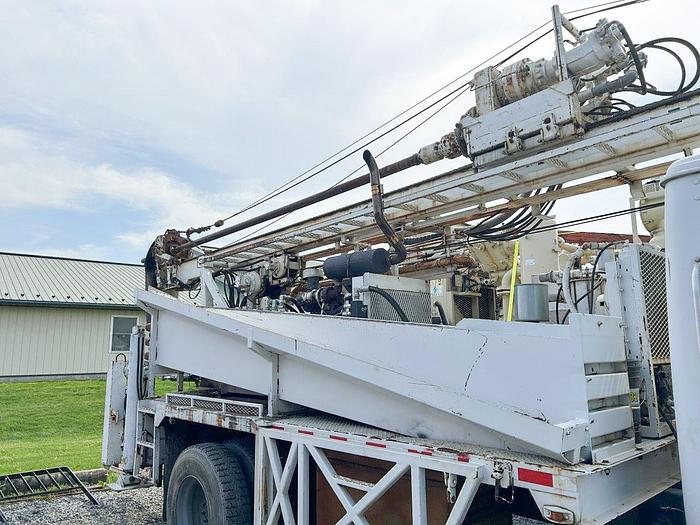

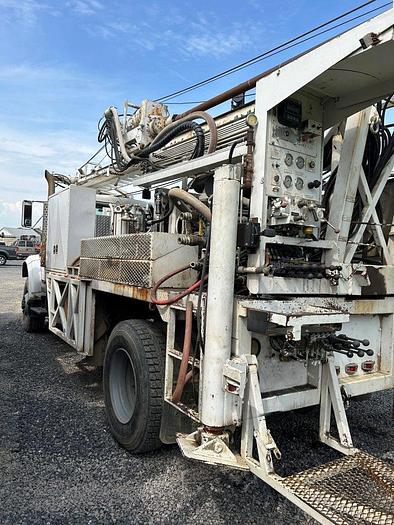

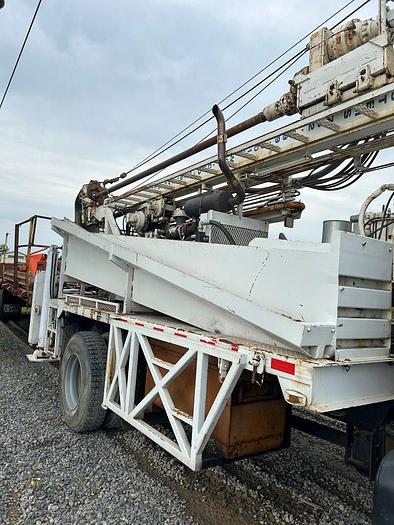

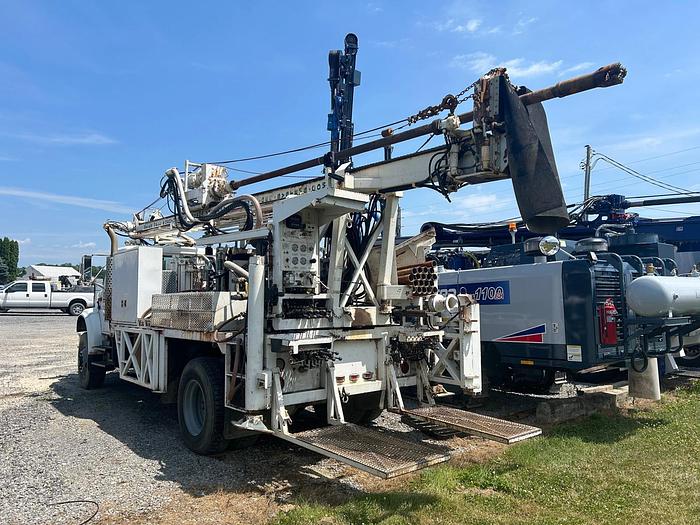

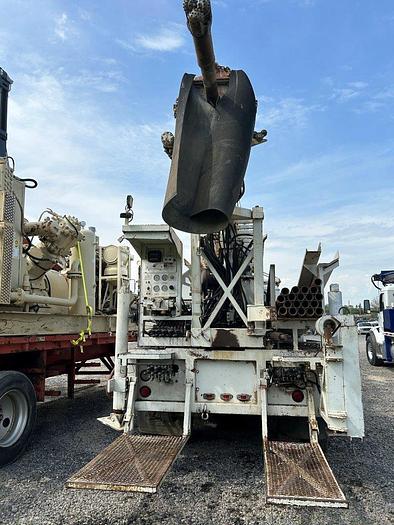

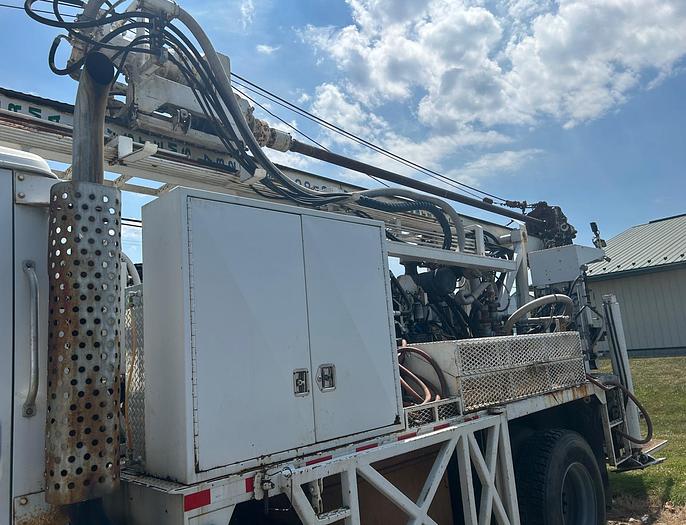

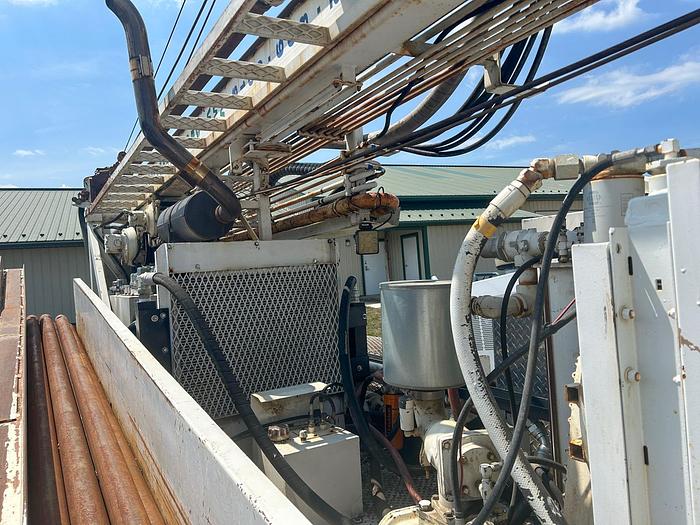

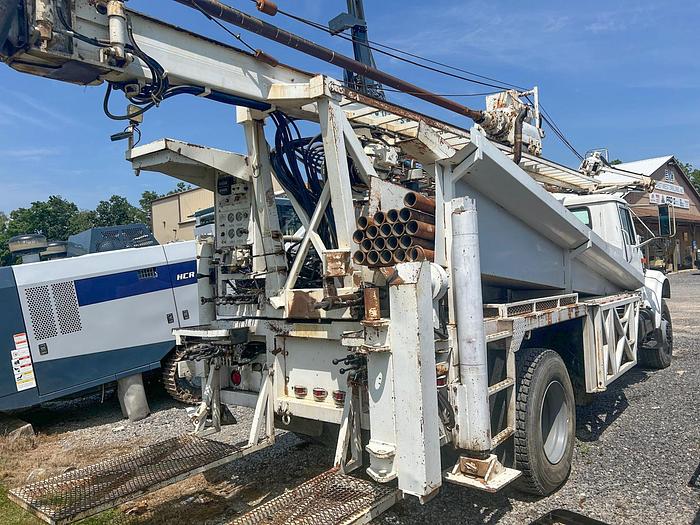

1991 Canterra CT250 Torquemaster Series Monitoring Drill Rig

Mifflinburg, Pennsylvania USA @ EWD Yard

Description

  • 1991 Canterra CT250 Torquemaster Series Monitoring Drill Rig - S/N: C7250-00054
  • Set up for water well & geotech drilling for auger & coring
  • 10,000 Ft-Lb Rotary Torque
  • Stepless Rotary Speed, 0-175 Rpm
  • Gear Driven Rotary, Instantly Reversible
  • 18,500 Pounds Pullback, 0·90 Fpm
  • 18,500 Pounds Pulldown, 0-90 Fpm
  • Long 23' Foot Stroke, Chain Feed
  • Cummins Diesel Engine On Deck
  • Triple Stage Engine Air Filtration
  • High Capacity Hydraulic Oii Cooler
  • All Functions Hydraulically Operated
  • Variable Speed

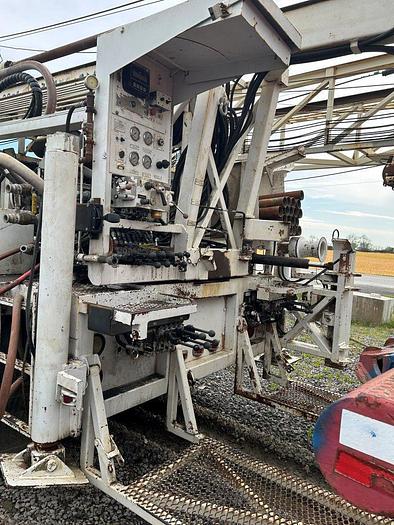

  • Integrated Hydraulic Control Manifold

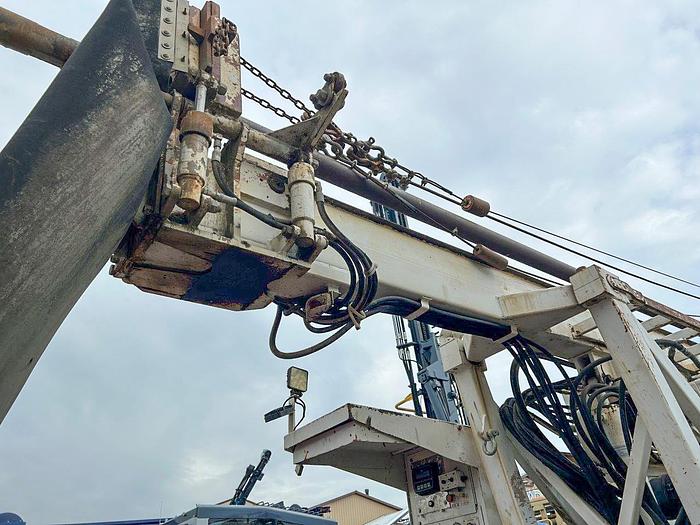

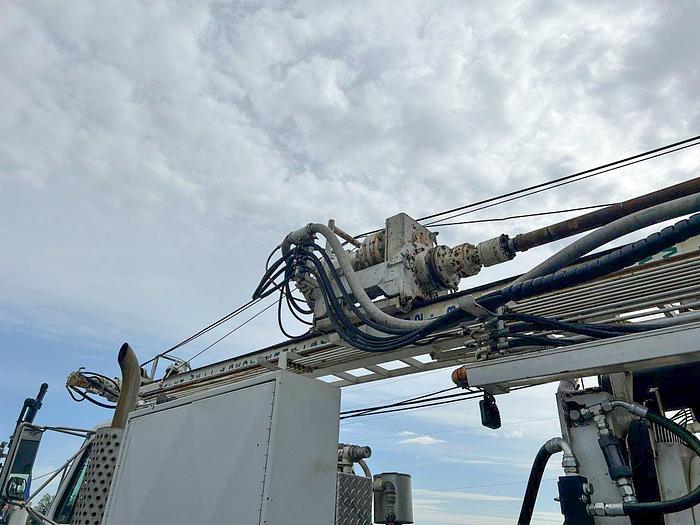

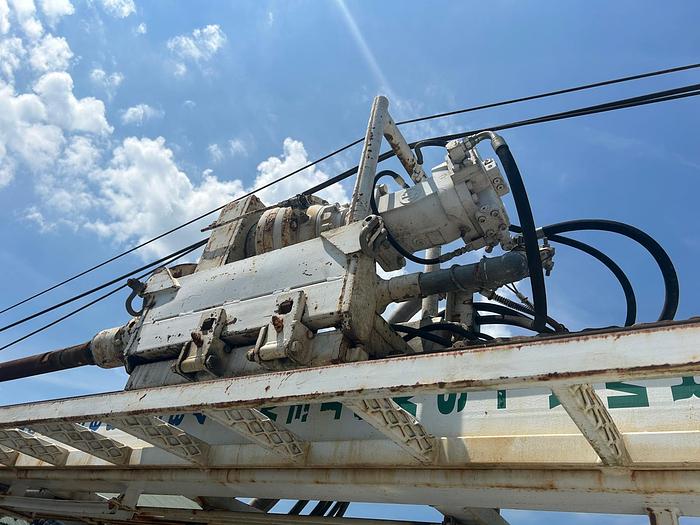

  • Top Drive Swings Off Hole Vertically
  • Failsafe Hydraulic Winch
  • Breakout Table And Hydraulic Wrench

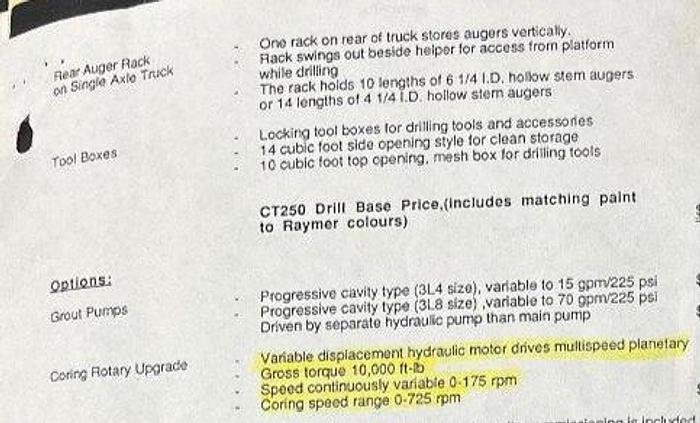

  • Coring Speed Shift Range 1-710 Rpm
  • Water Well Rotary Head, 3150 Ft-lb / 0-115 Rpm
  • Sandline Wich
  • Auto Sample Spudder
  • Two Inch Circulating Plumbing
  • Two Inch Swivel For Mud
  • Air Or Foam Drilling
  • 3x4 Centrifugal Mud Pump
  • Moyno Pump

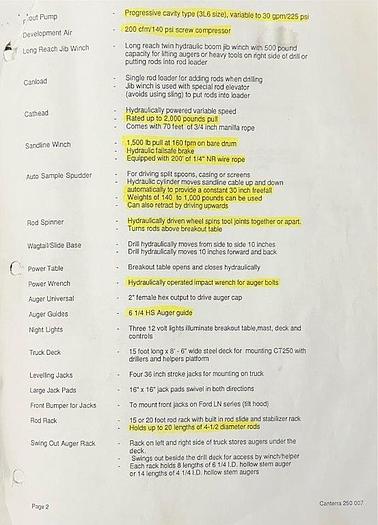

  • 200 Cfm Developmental Air Compressor
  • Jib Winch For Handling Augers, Rods, Tools
  • Single Rod Loader For Adding Rods
  • Rod Spinner
  • Powered Breakout Table
  • Cathead - Hydraulic Powered
  • Wagtail, Slid Base
  • Auger Guides
  • Suitable For Dth Hammer
  • Rock Drilling With Auxiliary Air Compressor
  • Lubrication For Downhole Hammers
  • 4 Leveling Jacks

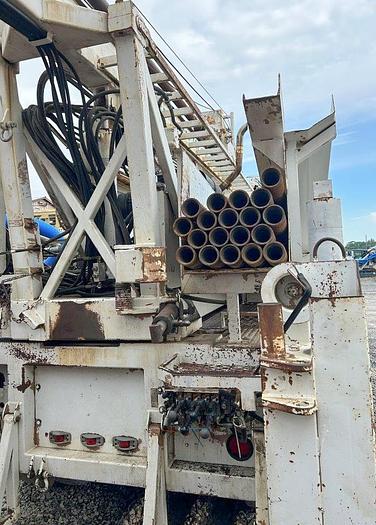

  • Auger Rack
  • Coring Spudder Etc. Are Included But Not Currently Mounted On Drill
  • As Previous Operator Was Using For Mud Rotary And Air Rotary Drilling
  • Rated To Drill Up To 8" Diameter Holes To 500 Ft. Depth
  • Can Also Run Hollow Stem Augers To 180 Ft
  • Core Drill To 80-0 Ft
  • Nearly $50,000 Worth Of Repairs And Upgrades Completed In 2022 Through 2023
  • Including 1 New Hydraulic Pump And 1 Reman Hydraulic Pump
  • Comes With 400' Feet Of 3-1/2 Inch Od By 20 Foot Drill Pipe

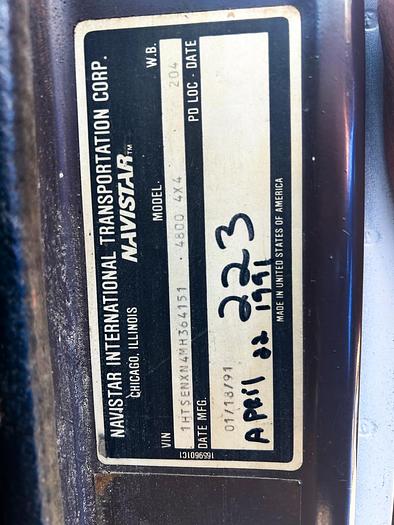

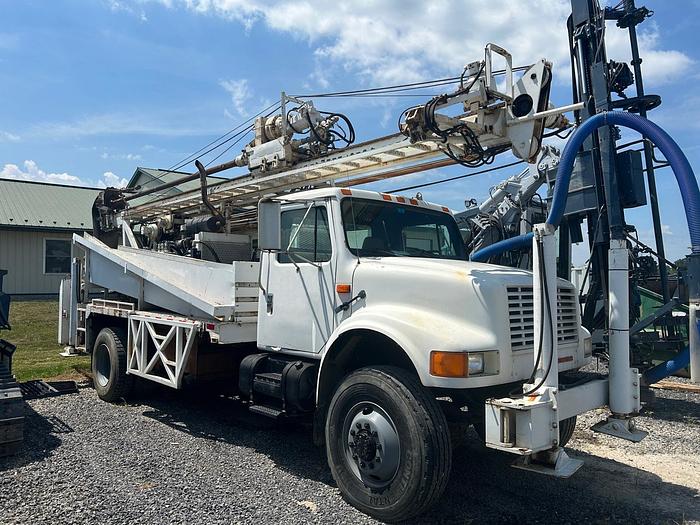

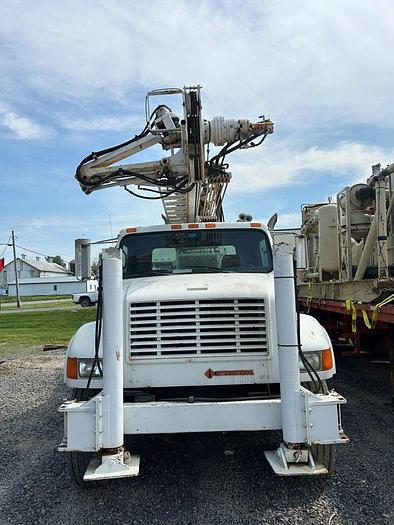

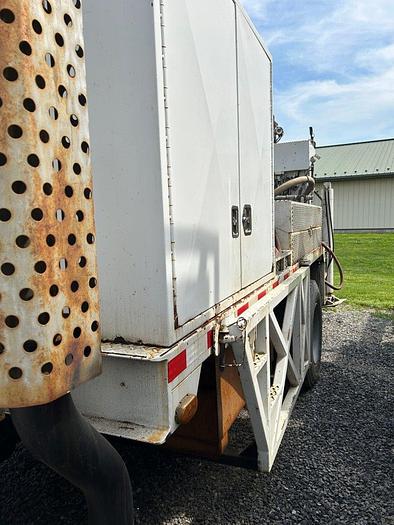

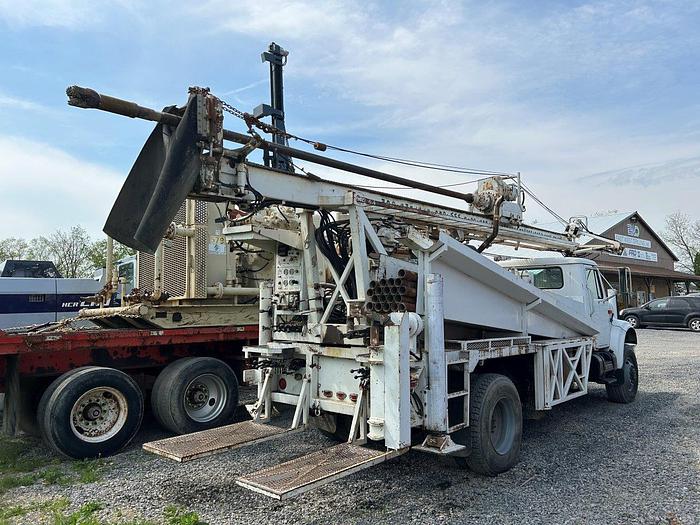

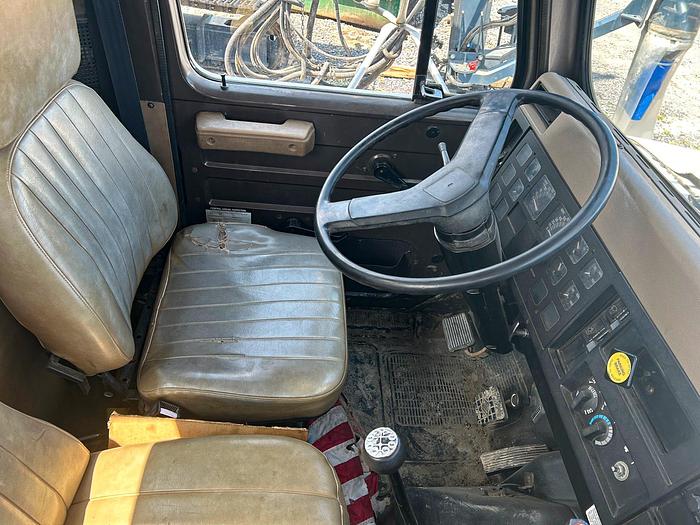

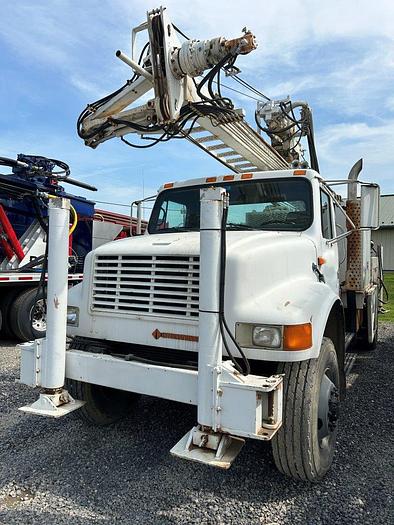

  • Mounted On 1991 International 4800 Series Truck
  • 4x4 (4-Wheel Wheel Drive)
  • Located in Mifflinburg, PA USA

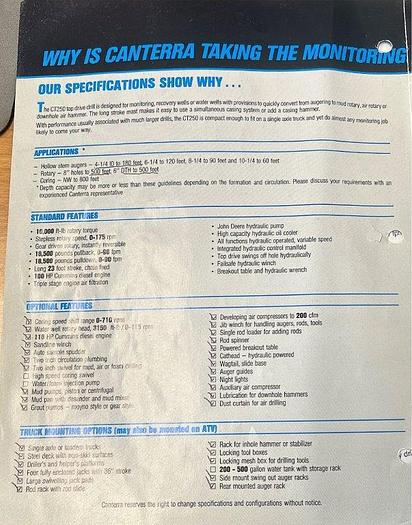

Specifications

ManufacturerCanterra
ModelCT250 Torquemaster Series Monitoring Drill Rig
Year1991
ConditionUsed
Serial NumberC7250-00054
Stock Number16842
StatusAvailable
