1996 Tesco CDR 1500 - SOLD

Mifflinburg, Pennsylvania USA @ EWD Yard

Sold

Description

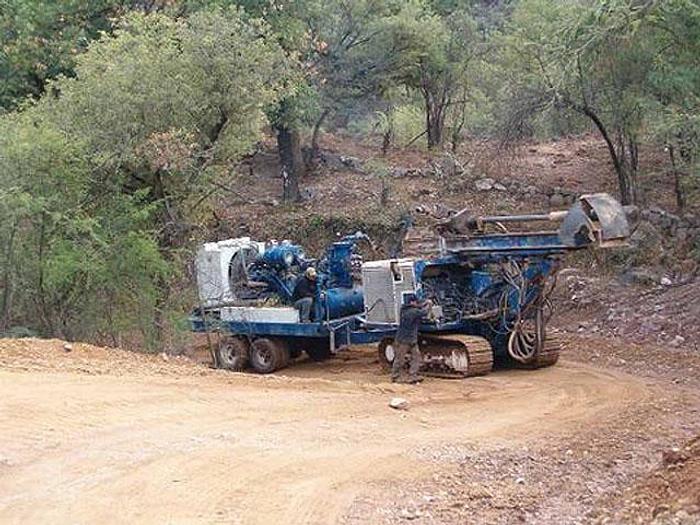

SOLD Core Drill set up for RC (Reserve/ Reverse Circulation) Capable of drilling to 1500 feet deep. Tilt angle mast that can drill from vertical to 40 degrees from horizontal. Perkins motor 1006-6TW, 185 hp @ 2600 rpm. 6 in-line cylinders, turbo-charged with water/air aftercooling Pullback 32,000 lbs, Pull down 20,000 lbs, and Rotation 47,605 in-lbs. Has an FMC Bean 4 cylinder water pump R2020 Comes with a hydraulic winch for handling casing and down the hole tools. The main hydraulic pump is Vickers PVH74C. 100 gallon hydraulic tank Two Parker rotation motors F12-110HF The controls are electric over hydraulic. The tram is operated by two Sundstrand joysticks. The drill functions are controlled by two OEM EJS3M joystick controls with push buttons. There are manual overrides for all functions. The drill uses RC (10' X 4.0") drill pipe (drill pipes are manually placed on the mast)

Specifications

ManufacturerTesco
ModelCDR 1500 - SOLD
Year1996
ConditionUsed
Stock Number217
Dimensions7.5 ft wide x 8.5 ft high x 13 ft long, 20 ft mast, and 26,000 lbs weight.
Mounted on two-speed cat excavator tracks36 in wide x 13 ft long. Top tram speed 4.5 mph.
FobSW Region, USA
StatusSold
