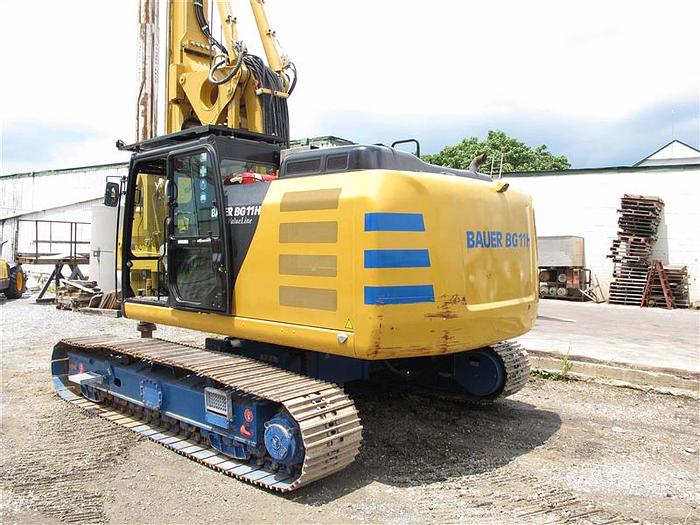

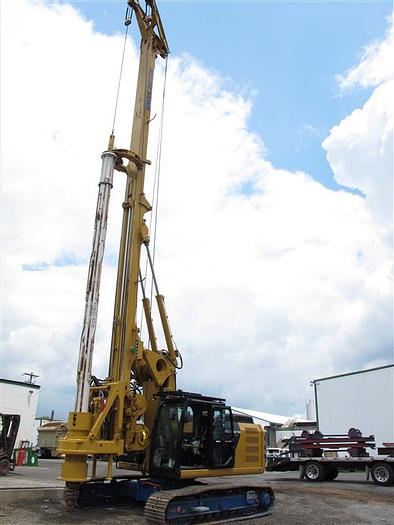

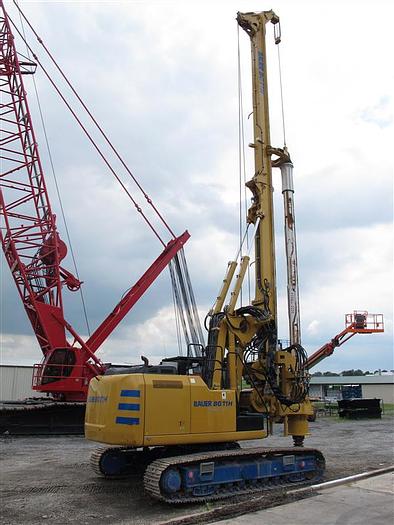

2015 Bauer Maschinen BG11H Crawler Drill Rig

Eastern Region, USA

Sold

Description

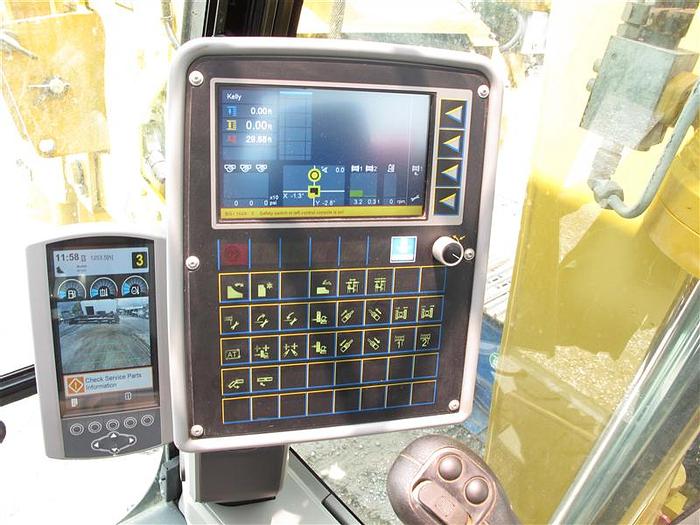

2015 Bauer BG11H Crawler Drill Rig 1600 hours Rig is outfitted with a 4-section kelly bar and has the KDK110 drive on it. Protection of the rotary drive with an integrated Kelly damping system Adjustment to various soil conditions with 2 selectable modes of operations Winches Superior and tested effective line pull and line speed Load classification M6/L3/T5 for main winch for heavy-duty, continuous operation A special grooving system on the main winch drum and a rope pressure roller reduce wear on the wire rope Pinned connection for easy mounting and dismantling of the winch on the mast Transparent ring for easy oil check (main winch) Kinematic system Bauer proven H-kinematic system with backstay cylinders and boom cylinders for best stability Bright color monitor Electronic load sensing on main and auxiliary rope Indicator for position of uppercarriage Upper Kelly guide No additional limit switch necessary Undercarriage – Solid Bauer-design for 360° drilling operating radius Telescopic with hydraulic cylinders Large footprint to resist high overturning moments – High traction forces Ergonomic cabin design – FOPS compliant – Bright color monitor Clear arrangement of instruments and displays Excellent visibility to drilling spot – Ease of operation Uppercarriage – HSE features – Heavy duty base frame optimized for BG attachment Rear view camera, beacon flash light and warning horn Multigrade oil for reducing fuel consumption – Easy access to uppercarriage Two mast sections with pin joint for optimized transport height Hydraulically operated upper kelly guide – Lower noise emission Crowd system with crowd cylinder – Crowd system “upside-down” installation Easy handling for transport without disconnecting hydraulic hoses Operating weight 39 t (as shown) 85,980 lbs Located in Eastern Region, USA

Specifications

ManufacturerBauer Maschinen
ModelBG11H Crawler Drill Rig
Year2015
ConditionUsed
Stock Number13985
Max. drilling diameter1,650 mm / 5.4 ft
Max. drilling depth40.0 m / 131.2 ft
Torque110 kNm / 81,130 ft-lbf

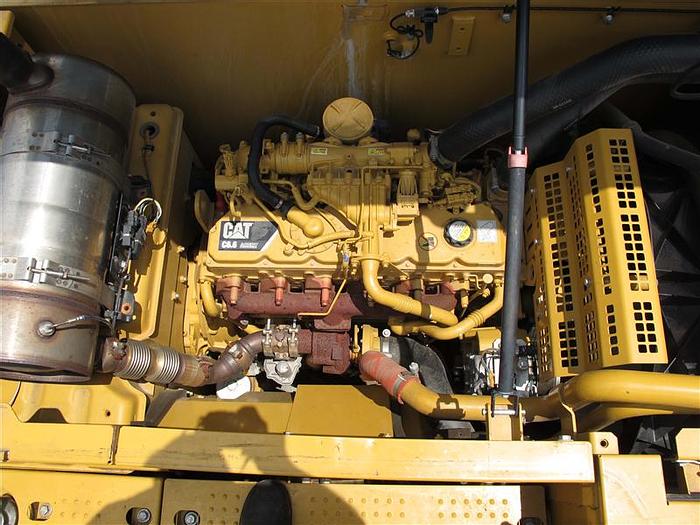

EngineCAT Tier 4 interim – C6.6 ACERT CAT Tier 4 final – C7.1 ACERT
Power122 kW @ 1,800 U/min 163.6 HP @ 1,800 rpm
Height16.5 m / 54.3 ft
Kdk rotary drive– Single gear drive with strong and robust design and high mechanical and hydraulic efficiency
StatusSold
