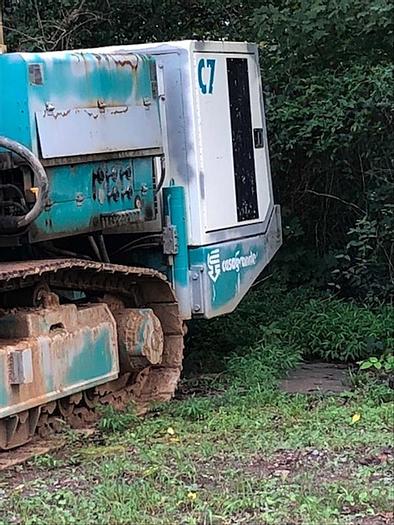

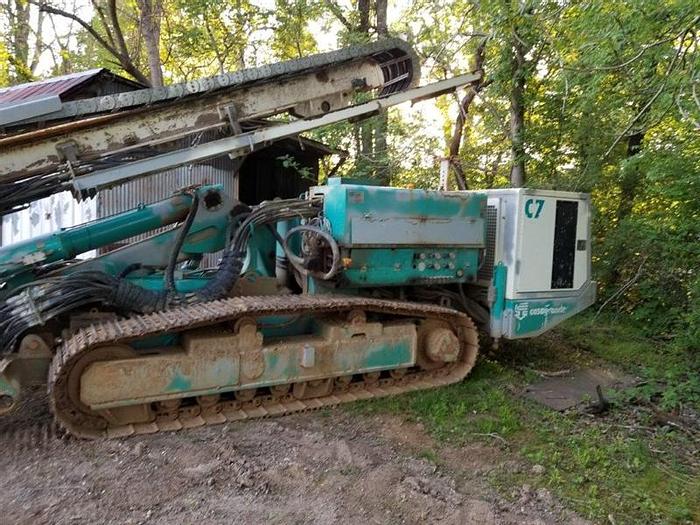

2012 Casagrande C7 Hydraulic Crawler Drill
Sold
Description
2012 Casagrande C7 Hydraulic Crawler Drill Rig
Undercarriage with tracks driven by hydraulic motors coupled to planetary reduction gears
Soundproofed Deutz diesel engine;
TCD 2012 L06 2V rated power 147 Kw (200 hp) AT 2300 RPM.
16" Drill Clamp
Fuel Tank 350 L
Two main hydraulic variable displacement piston pumps capacity 218 + 218 l/m, 250 bar maximum working pressure.
Aux variable displacement piston pump capacity 65 l/min, 220 bar max working pressure.
Oil tank 700 L
Completed radio remote controlled;

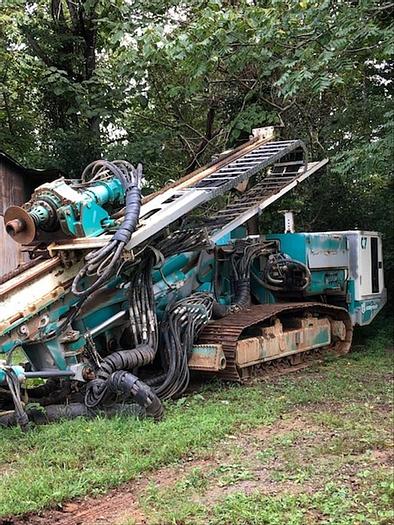

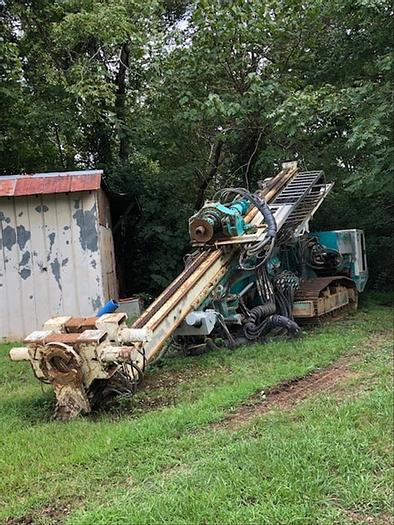

Fabricated steel mast, swivel mounted on heavy duty support arm.
Mast movements are by means of hydraulic cylinders which give good maneuverability.
Fabricated steel mast, 12165 mm long.
10400 mm stroke of the rotary head with fixed clamps.
9950 mm stroke of the rotary head with sliding breakout clamp.
Hydraulic motors displacement regulation kit T2000 / T2500 type rotary heads.
Rotary Head Type T2500 with offhole slide; Main features of the rotary head are:
Two variable displacement motors
Rear swivel for T2500 (for single head configurations)

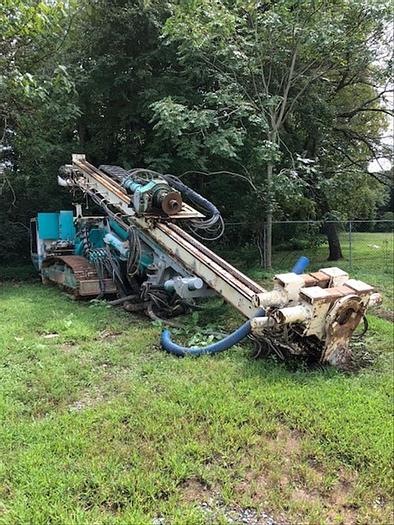

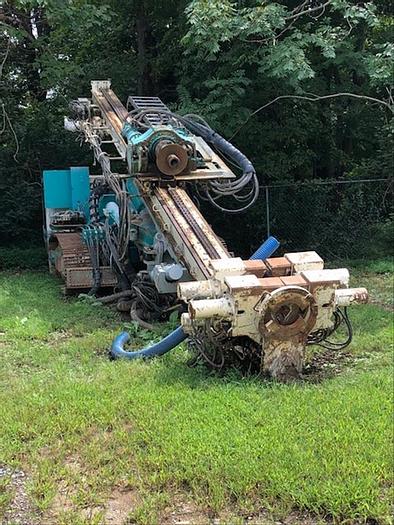

Blocking and break-out clamps type M5 – M5S
A2 type hydraulic service winch
Hydraulically operated jib
Application for Gamma 202 + C35 type pumps
Triplex foam pump type C35
Hose reel complete with pressure washer wand.
Water piston pump model Gamma 202.
Working order, may need service and cleaning (can paint for additional cost if needed)
Financing Available
Located in Eastern Region, USA
Specifications
Manufacturer | Casagrande |
Model | C7 Hydraulic Crawler Drill |
Year | 2012 |
Condition | Used |
Stock Number | 14065 |
Hours | 4926 hours |
Width of track shoes | 500mm |
Length of crawlers | 3628mm |
Travel speed | 0 – 1.5 Km/h. |
Ground pressure | 6.60 N/cm2. |
Operating weight | Approximately 22 metrics tons. |
Crowd force | 40Kn |
Extraction force | 80 kN. |
Max crowd/extraction speed | 43 m/min. |
Max. rotation speed | 22 rpm. |
Max. torque | 20.0 kNm. |
Max. working pressure | 260 bar. |
Trough-hole passage | 200 mm 76 mm ID drive sleeve. |
Working range | 90 – 406 mm. |
Clamping force | 250 kNm |
Break-out torque | 45 kNm Set of inserts 405 mm dia. centering device. |
Line pull | 20 Kn |
Max. rope speed | 54 m/min |
Working pressure | 50 bar. |
Flow | 30 l/min. |
Power consumption | 3 Kw. |
Status | Sold |
