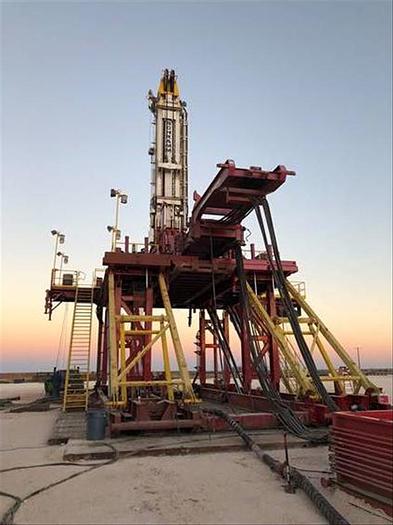

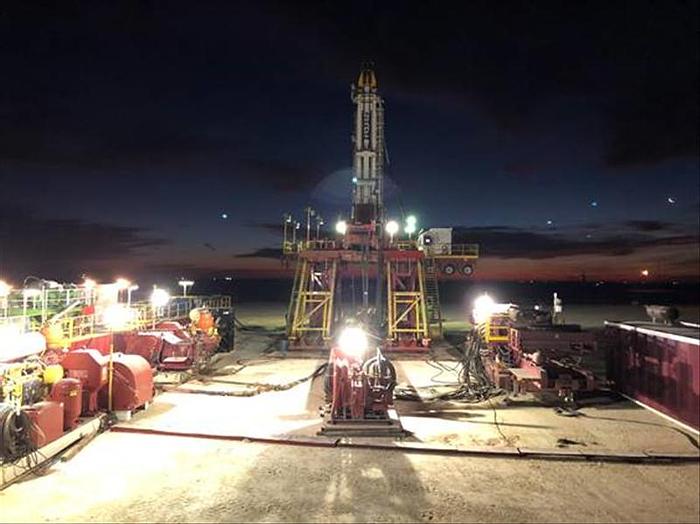

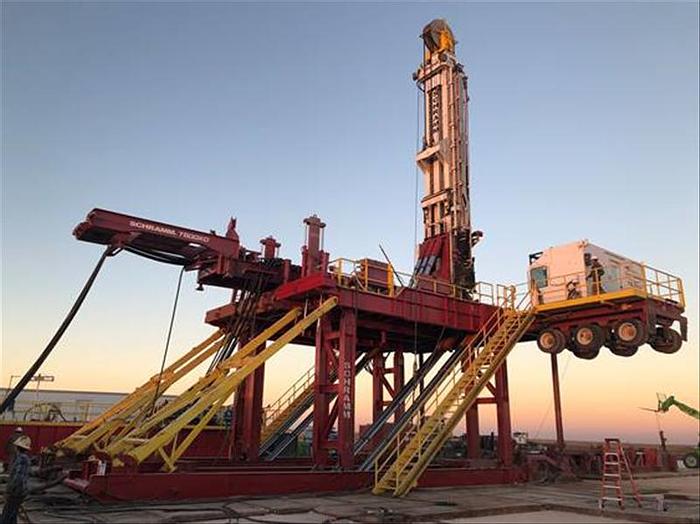

2013 Schramm T500XD Drill Rig

2013 Schramm T500XD Drill Rig 1,500 HP Drilling Rig POWER UNIT:  MTU 12V -2000 engines, 760 bhp (567 kw) @ 1,800 rpm with electric start Dual core, side by cooling package, 130”F ambient rating  220 gallon diesel fuel tanks Hydraulic pump systems, with each including (8) piston pump systems and (1) gear type pump (1) 1,000 gallon hydraulic tank with (18) twin element hydraulic tank with (18) twin element hydraulic tank with (18) twin element hydraulic tank with (18) twin element hydraulic tank with (18) twin element filters SUB -BASE AND WALKING SYSTEM: Floor Height: 22 ft.  Clearance: 19 ft. under table bushing TELEMAST SYSTEM: Top Head Travel: 56 ft. Hook Load: 500,000 lbs. actual Hoist 80,000 lbs pulldown capacity TILTING TOP DRIVE: Rotation Speed: 0-140 RPM Rotation Torque: Up to 35,000 ft-lbs HYDRAULIC ROUGHNECK: Make/Break Torque: 60,000 ft -lbs @ 3,500 psi Loadsafe XD Pipe Handling System STANDARD ACCESSORIES: Water injection system, rated 35 gpm @ 1,000 psi  DTH lubricator rated up to 5 gph (19 lph ) @ 1,000 psi ) @ 1,000 psi Air manifold for air drilling operations Air/mud fluid lines, 4 inch stand pipe and traveling hose for 7,500 psi operation Explosion proof 240V lighting for nighttime operation (customer supplied generators) BOP handling system, carriage and trolley rated 40,000 lbs. SUPPORT EQUIPMENT: 40’ Conex BoX : with spare parts for Rig Located in Western Region, USA
