0 Schramm MTU 12V-2000TA DDEC Tier 1
Sold
Description

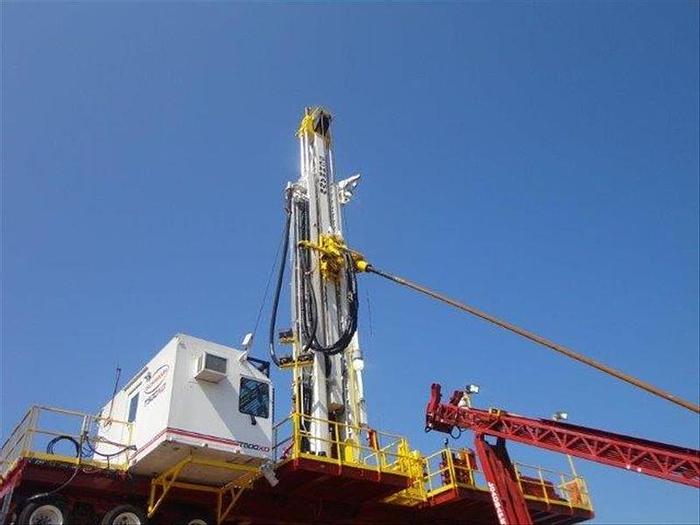

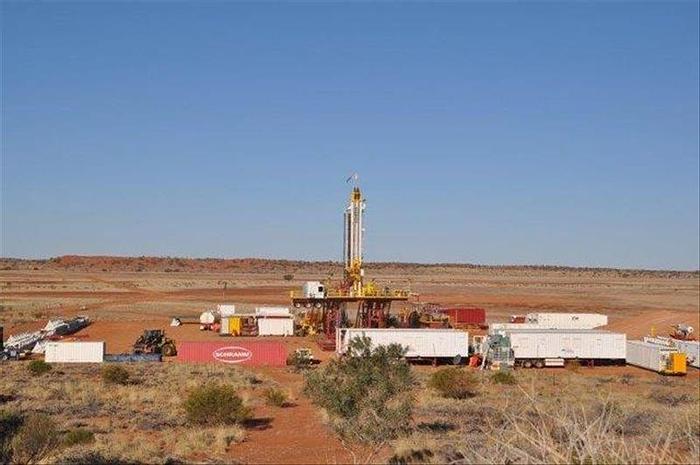

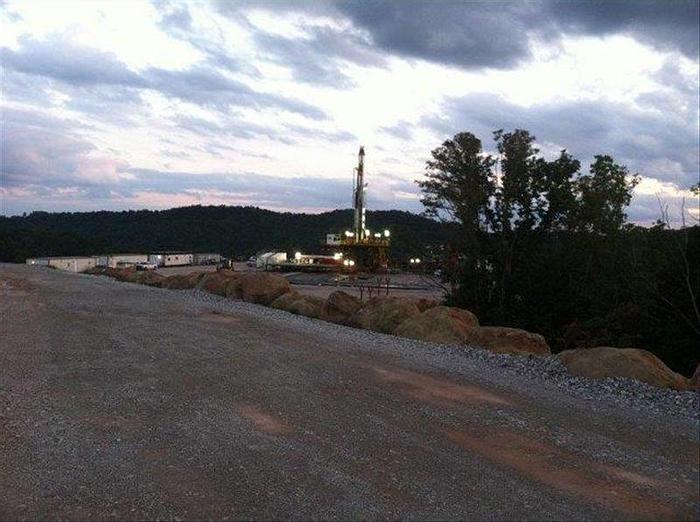

New 2015 Schramm T500XD Telemast Drill Rig
Trailer Mounted
Rated 1520 HP DIESEL POWER
60° PAD WALKING SYSTEM
TILTING TOP DRIVE
CONTROL ROOM
LOADSAFE® XD AUTOMATED PIPE HANDLING SYSTEM
HANDS FREE POWER BREAKOUT
500,000 lbs. (226,796 kg) hook load rig in a portable over the road package
80,000 lbf. (356 kN) hydraulic pulldown for precise weight on bit control
Control cabin with joystick controllers for drilling and pipe handling operations
Self-erecting in a matter of hours without the use of a crane
Power breakout, table and slips maximize safety on the drill floor
LoadSafe XD hands-free Range III pipe handling system included
Crew of three typical
Optional dual fuel configuration available
no draw works on this rig, has hyd powered hoist and rotation
Located in Eastern Region USA
Note: Major Price Reduction to Sell Quickly
Altitude Performance, All MTU Series 2000 Engines - % of Rated BHP:
5,000’ (1524m) = 99.0% at 1800 rpm
10,000’ (3048m) = 97.0% at 1800 rpm
15,000’ (4572m) = 94.5% at 1800 rpm
Specifications
Manufacturer | Schramm |
Model | MTU 12V-2000TA DDEC Tier 1 |
Condition | New |
Stock Number | 14865 |
Power | 760 bhp (567 kw) @ 1,800 rpm |
Torque | 2,188 ft-lb (2,967 N-m) @ 1,800 rpm |
Displacement | 1,458 cu. in. (23.9 l) |
B.s.f.c. | .338 lb/bhp-hr @ Maximum Power (206 g/kw-hr) |
Fuel consumption | 36.2 g/hr @ Maximum Power, 27 g/hr @ Average Load |
Horsepower ratings | +2%, -0% |
Status | Sold |
