0 Bucyrus Erie 36L Series II “New Style” Cable Tool Rig
Sold
Description
Bucyrus Erie 36L Series II “New Style” Cable Tool Rig

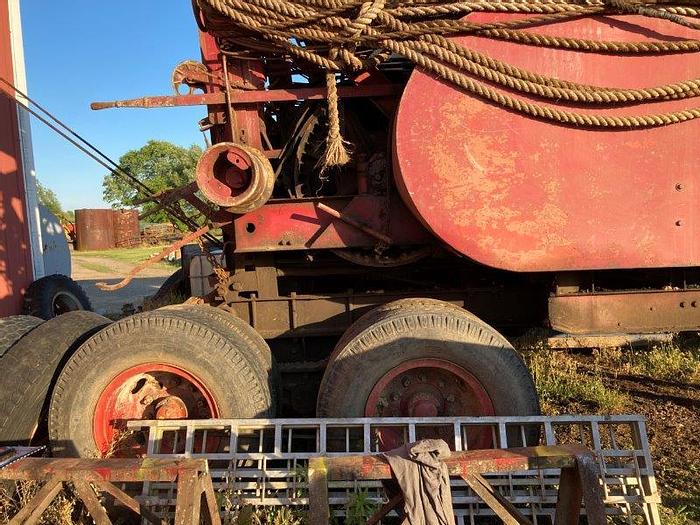

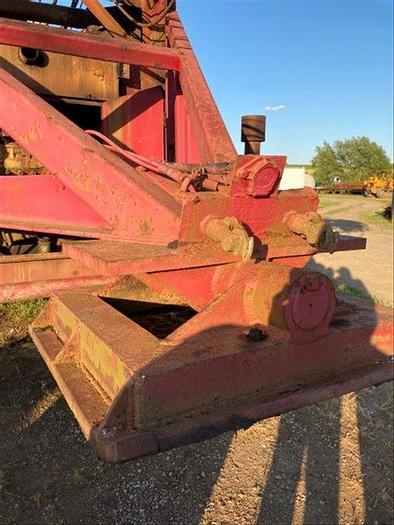

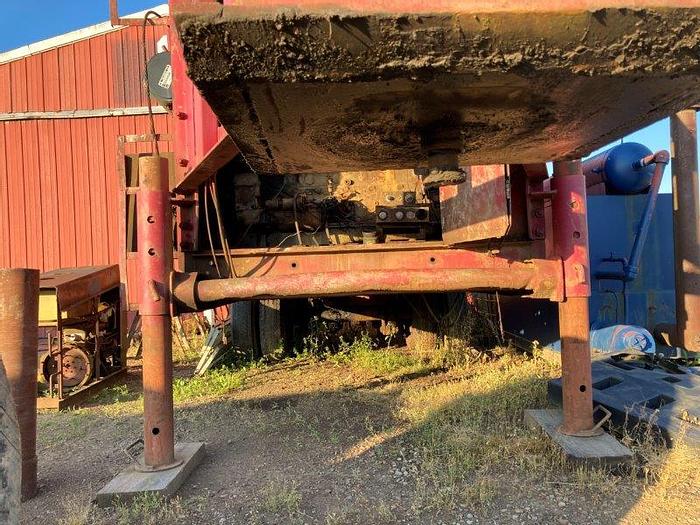

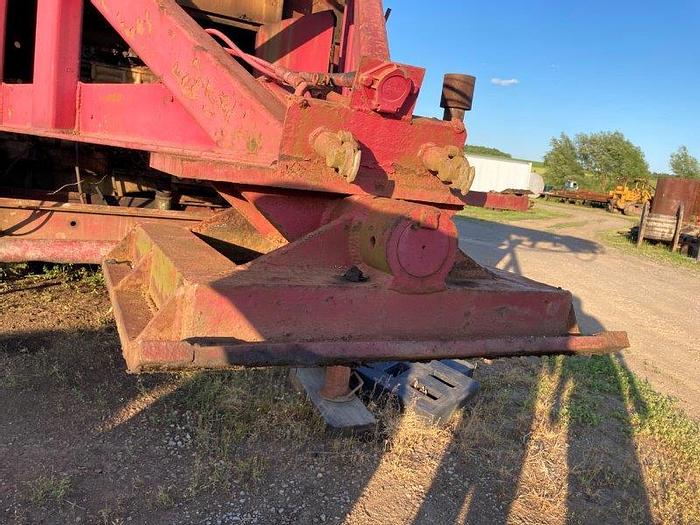

Mounted on a Trailer - Fifth Wheel Towable Tandem Axle (hitch pivots for easy hook up).

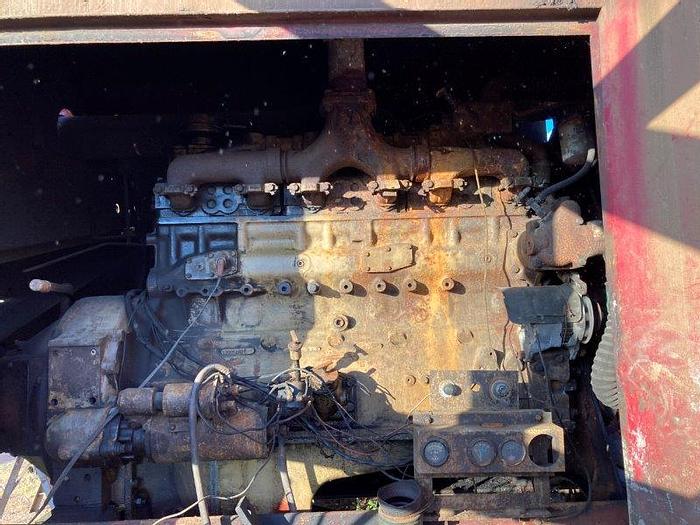

Cummins Diesel Engine
(NO DRILL TOOLING INCLUDED)

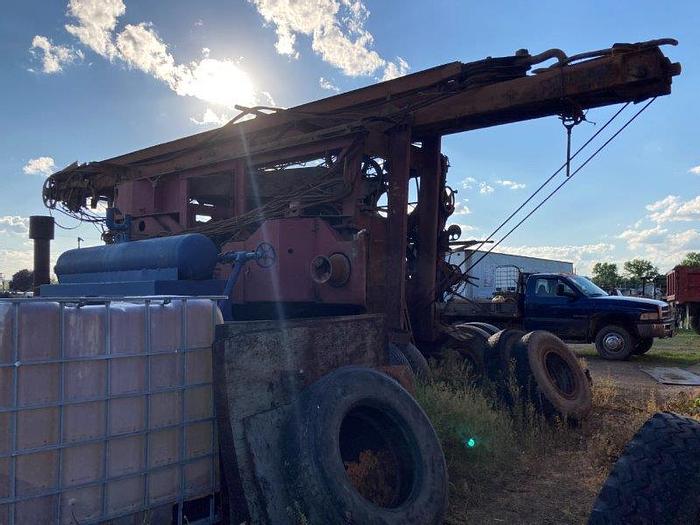

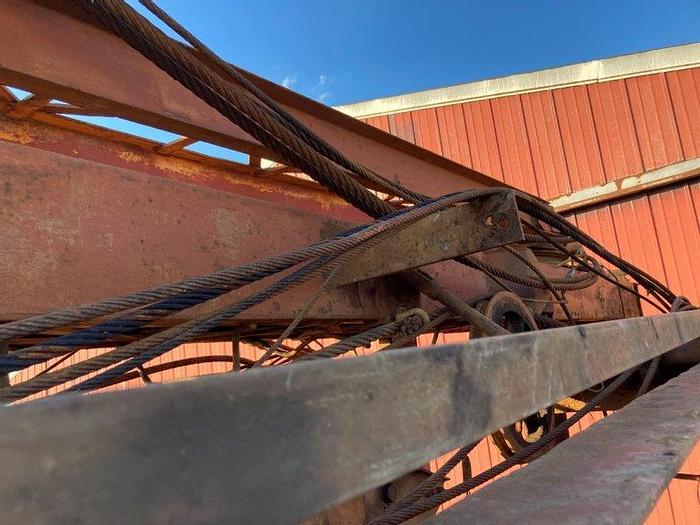

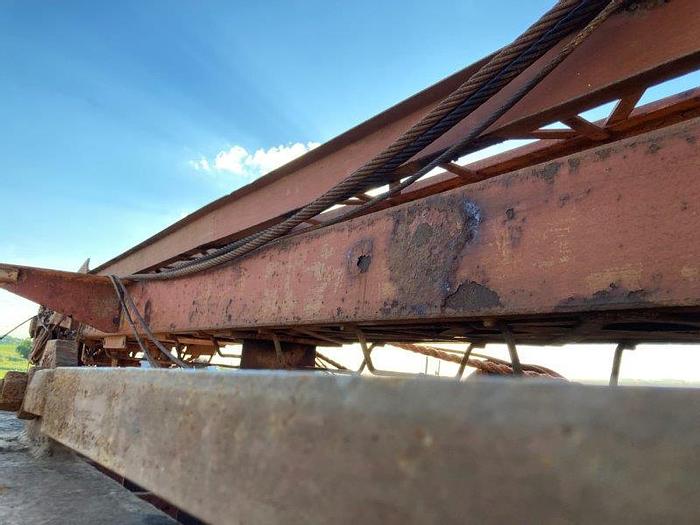

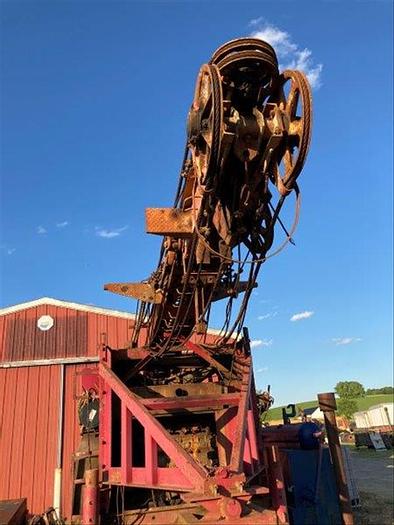

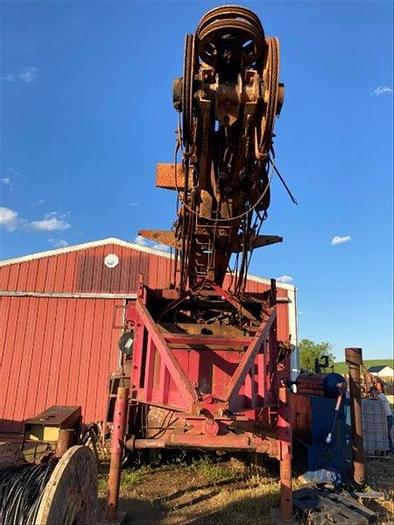

Stand 60-Foot Derrick…Power Hoisted Derrick Reaches 60 Feet High (18.3M) Telescopes to 33’10” for moving(this particular unit has been updated with reiforced eztra-stout derrick).
Power Plus…Equipped with diesel engine rated to deliver 146 HP at 1,750 RPM full load speed.
Heavy Loads…Includes casing tackle strut and auxillary A-frame leg for heavy casing loads.
Fast Hoisting…average hoisting speed for bull reel in high gear is 426 FPM; for sand reel, 1,105 FPM; and for calf reel, 372 FPM.
Forward & reverse speeds on all reels.
High-Capacity Clutches
Full Automatic spooling
Additional Specifications 36-L:

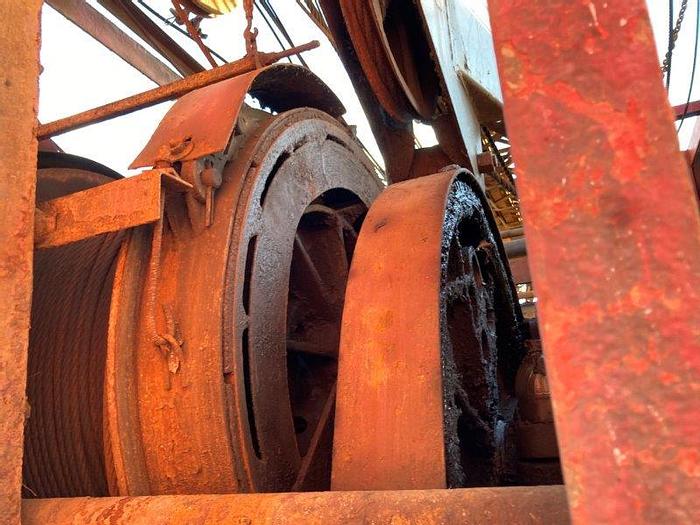

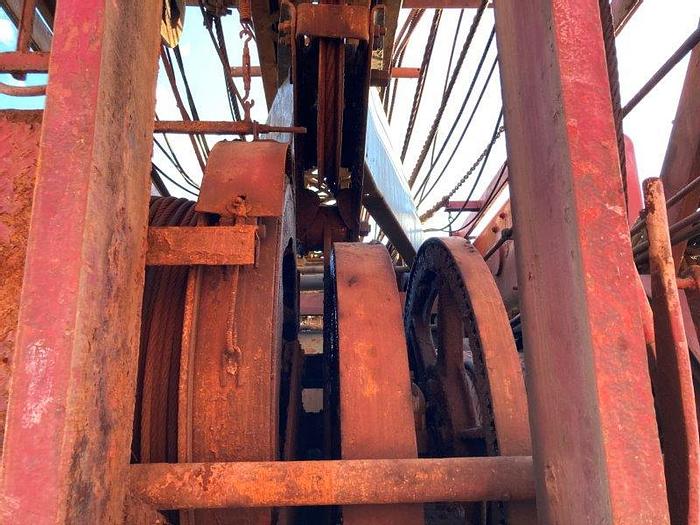

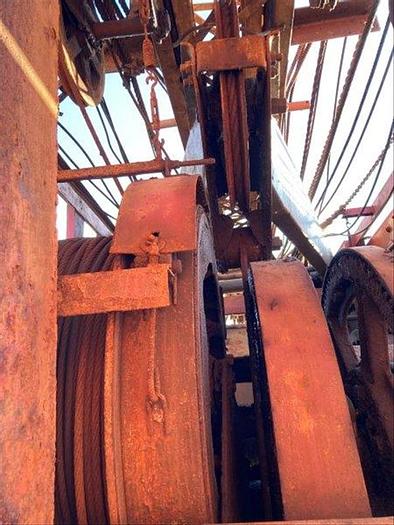

Bull Reel Capacities:
Line Pull (Low Gear) - 38,750 LBS.
Line Pull (High Gear) - 20,700 LBS.
Working Side Capacity - 4860’ OF 7/8” Line

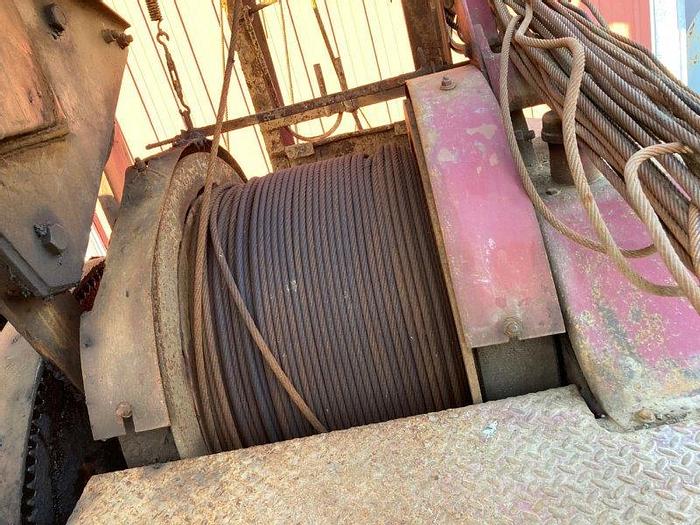

Sand Reel Capacities:
Line Pull (Low Gear) - 15,430 LBS / 6.999 KG
Line Pull (High Gear) - 8,275 LBS / 3.754 KG
Working Side Capacity - 4700’ OF 9/16” LINE
Calf Reel Capacities:
Line Pull (Low Gear) - 26,200 LBS / 11.884 KG
Line Pull (High Gear) - 13,950 LBS / 6.382 KG
SpoolCapacity 680’ OF 1” Line
Hand Wheel for Spooling Device.
Positive Cam-Control of Engine Throttle.
Bull Reel Brake Lever.
Casing Reel Brake.
Reverse Clutch Lever.

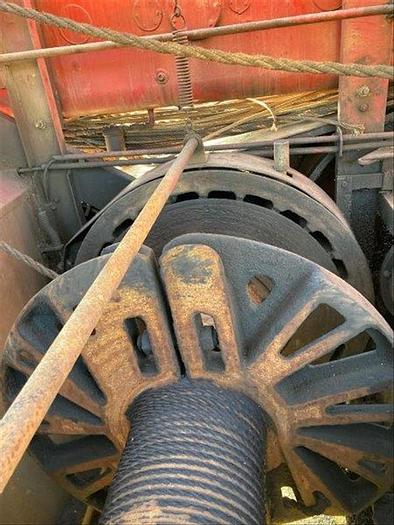

Twin Disc Clutch in sand real.
Updated with V-belt which doesn’t slip.
New cushion/shock for top included (not installed).
5,000’ sand line, 500’ Casing line, lots of wheels and band wheel all included.
Throttle linkage is stuck so may need to repair/replace that but otherwise everything works, ready to set up and go.
Also have 10,000 ft. of drill line and plenty of tooling available but would be extra cost.
Located in Eastern Region, USA
Specifications
Manufacturer | Bucyrus Erie |
Model | 36L Series II “New Style” Cable Tool Rig |
Condition | Used |
Stock Number | 15244 |
Bucyrus erie 36-l specs (manufacture) | It can drill holes from 6" in. Dia. TO 36" in. Dia, to 5,000' ft. deep. It can handel 6,250 LBS. of tooling (this particular unit just finished a 3600’ hole). |
36-l standard features include | Variable stroke action… five positions are provided for the crank pin – 20” , 28” , 36” , 40” & 46”. |
Dimensions | 29’ x 8’6” long x 8’ 5” wide x 12’ 3” high. |
Status | Sold |
