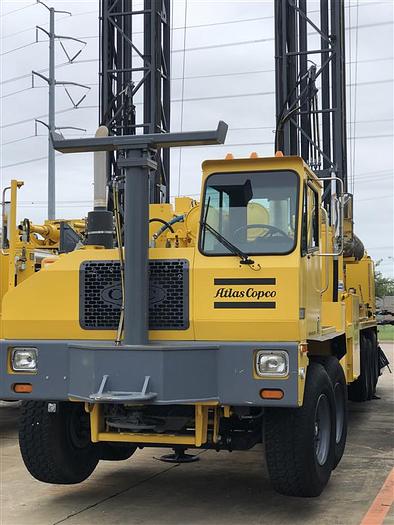

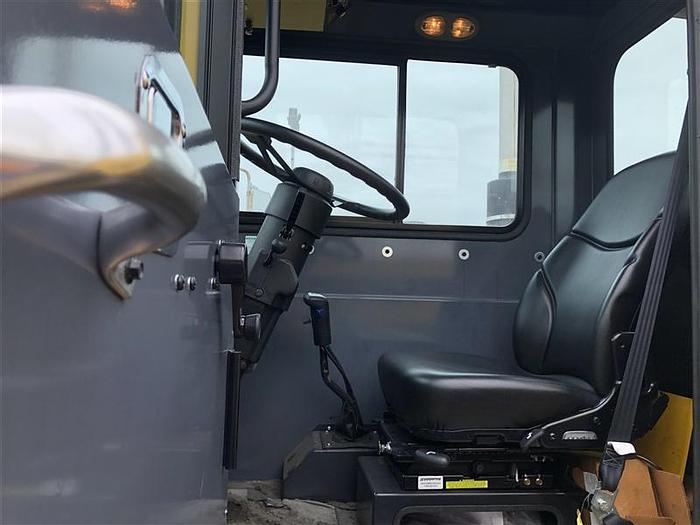

2012 Atlas Copco RD20 Range III XC Drill Rig

Western Region, USA

Sold

Description

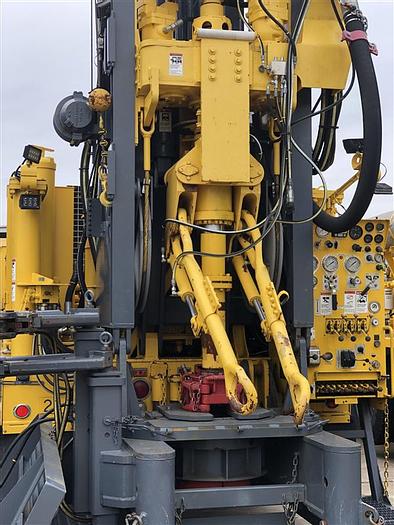

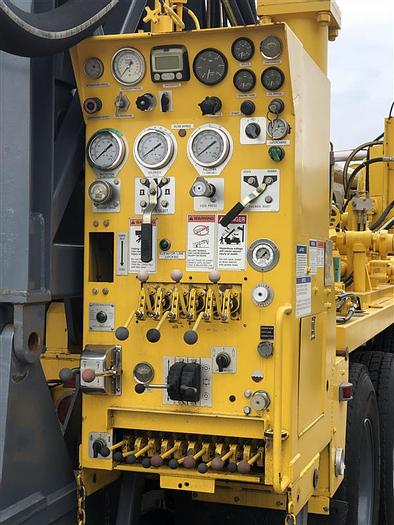

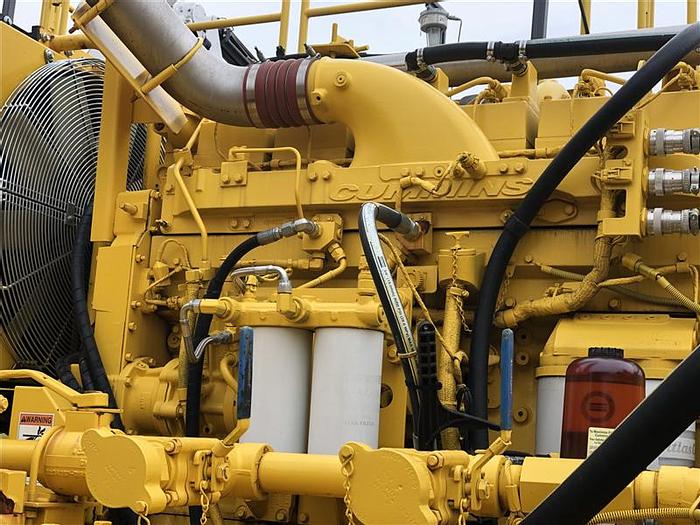

New & Unused 2012 Atlas Copco RD20 Range III XC Drill Rig CARRIER Twin H-beam main frame - reinforced 16 in 406.4 mm 5-axle, custom carrier 415 hp 317 kW diesel engine 8-speed transmission Manual with lo - lo and reverse Tridem rear axles with lockers 23,000 lb each 10,433 kg each Tandem front steering axles 22,000 lb each 9,979 kg each DERRICK Length 61 ft 11 ½ in 18.88 m Width 4 48 1/2 in 1.23 m Depth 41 in 1.04 m Top of table to spindle 51’ 6 in 5.7 m Table to ground (rig sitting on tires) 44 in 1,118 mm Table to ground (jacks fully extended) 92” 2,337 mm RIG DIMENSIONS Height derrick down 13’ 10 in 4.22 m Height derrick up 62’ 6 in 19.05 m Width 8’ 4 in 2.54 m Shipping weight (less tooling) 88,000 lb 40,000 kg TIP OUT LINKS Forged steel 150 ton 136 tonnes Length 60 in 1,524 mm Tip out hydraulic cylinder on each link Angle 0-80° from vertical Control driller’s console TABLE & MASTER BUSHING Design folding with twin hydraulic jacks Max opening 26 in 660 mm API split master bushing 17 ½ in 445 mm Capacity 60 ton 54.4 tonnes RIG PERFORMANCE Hookload 120,000 lb 54.4 tonnes Pulldown 30,000 lbf 13,636 kg Fast feed up 106 ft/min 32.3 m/min Fast feed down 180 ft/min 54.9 m/min Drill feed 29 ft/min 8.8 m/min Torque 8,000 lbf-ft 10.8 kNm Speed 0-120 RPM 0-120 RPM Spindle 3 in 76.2 mm Swivel Type Multi chevron packings Opening 2 ½ in 63.5 mm Located in USA

Specifications

ManufacturerAtlas Copco
ModelRD20 Range III XC Drill Rig
Year2012
ConditionNew
Stock Number15450
StatusSold
