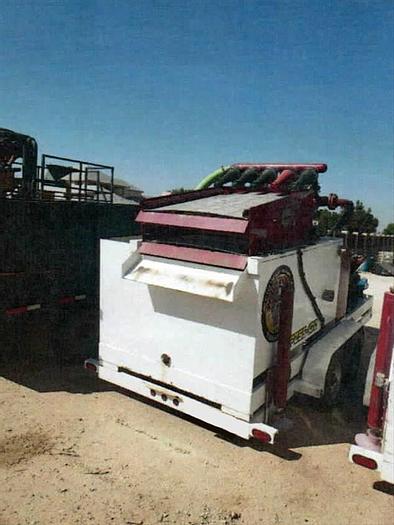

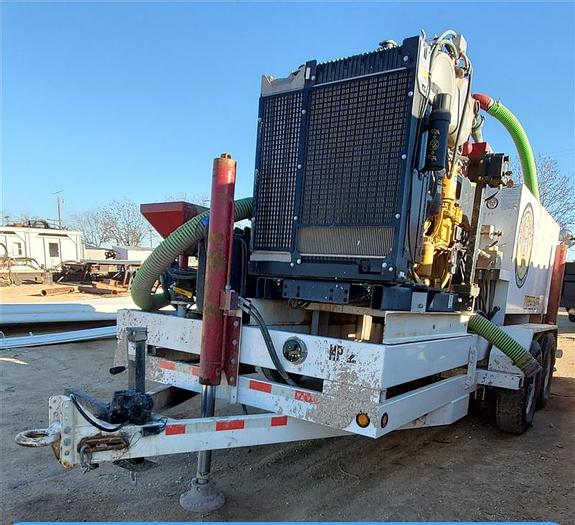

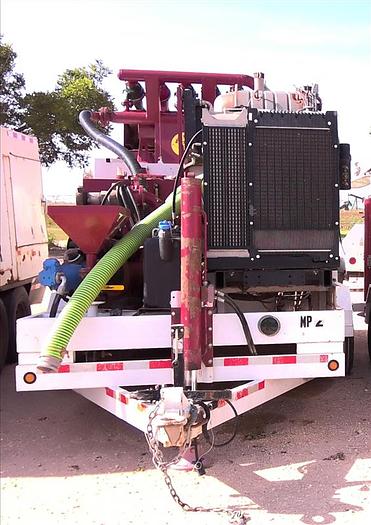

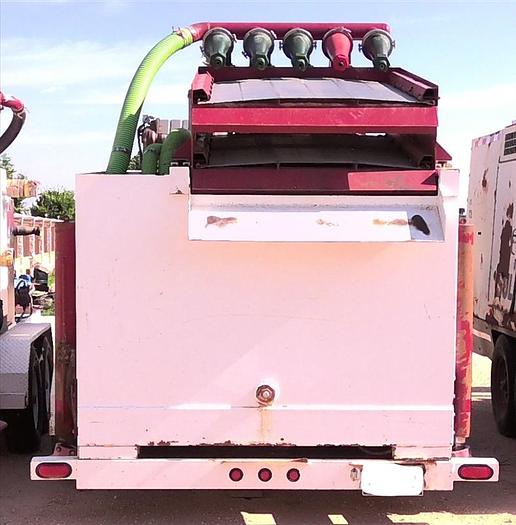

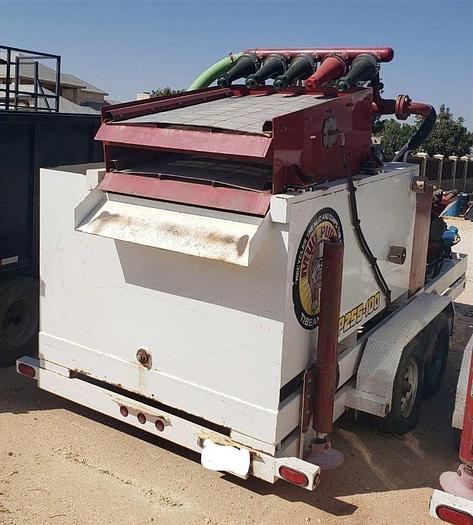

2018 Mud Puppy MP255-100 Mud System

Western Region, USA

Sold

Description

Off The Market & Currently Working on Projects 2018 Mud Puppy MP255-100 Shaker System Everything ready to work - Maintenance kept up 865 hours Mud mix hopper and jet system Pick Up & Clean up to 500 GPM The Mud Puppy sets up in just a few minutes. No settling pit to dig and fill Only 1000 Gallons of water needed to get started Clean mud means a clean hole and job site and Pump, Drill string, and Swivel all last longer with clean mud Cat Walks Mud Reservoir: 1000 Gallons 3/16" HR Steel 2" - 4" Suction Outlets Sloped walls & Sand traps Deutz Diesel TCD2013L062V06: rated 250 HP V @ 2300 RPM Liquid-Cooled 6 cylinder in-line engine Fulfills Tier III EPA emissions regulations Electronic Engine Monitor System (Safety shutdown) Gauge Panel Alternator 12 Volt Shaker Dbl Screen: 4' x 5' Double Screen 10 & 100 Mesh Hydraulic driven wIth constant speed control Rotary Motion 1/4" HR Steel wall construction Mud Pump for Down Hole Circulation: 4" x 3" x 13 Centrifugal Pump 250 series with Mechanical Seal Hydraulic Hydrostat Drive Speed Control 0 - 3500 RPM Up to 100HP 3" Discharge with Valve Desander System Discharge Over the Shaker: 2"x3"x8.5" 118 (Centrifugal) Mud Pump Manifold Pressure Gauge 3-5" Desander Cones (Upgrade to 5) 255 GPM 15 Micron Cut Sand Guzzler pickup pump: 12" (Centrifugal) Mud Pump Can take rocks up to 1-1/2" diameter Pump 0 - 2500 RPM & 0-500 GPM 20' of 4" Hose Hydraulics System: Closed Center Variable Displacement pump Load sense Control 60 Gallon Oil Reservoir High Capacity Oil Cooling System Other: Weight Approximately 9,500 Pounds without trailer Foot Print 6'6" Wide x 16 " Long x 8'3" Tall (without trailer) Fuel Capacity: 35 Gallons Diesel for 15 hours Mounted on a Trailer: 30k pinte hitch (2) 12k axles & 8 tires 6” frame and tongue, adjustable height 2-5/16" Ball or pintle hitch Electric brakes 26' L x 8'6" W and 5,000 lbs are estimated Located in Western Region, USA

Specifications

ManufacturerMud Puppy
ModelMP255-100 Mud System
Year2018
ConditionUsed
Stock Number15445
StatusSold
