Boart Longyear LM 75 Core Drill

Sold

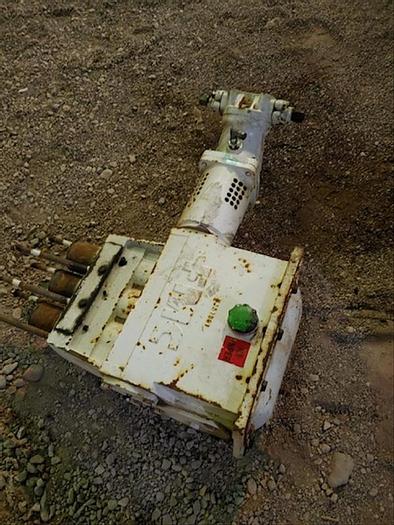

Boart Longyear LM 75 Underground Core Drill - Around 2004-2006 model Spare side plates for Rotary head, Drill can be set up to drill on any angle up or down, has 360 degree turn table Suggested drilling depth with NQ rod to 700 Meters = 2,297 Feet deep A wireline winch Longyear hydraulic chuck A hydraulic foot clamp 360 degree rotation to run up to HQ rod size Base with (4) hydraulic leveling jacks Note: If the mast is raised to its full upright vertical position, and slid down to the ground, the height is 10'4", that is with the fold down extension for the wireline pulleys folded down, (it is attached at the top of the mast) if the extension is folded up then add another 2' feet. Over all length of the drill with the mast laid down and extension fold over is approx 10'4". Height with mast laid down is around 5'6" maximum. Width is 3'6" maximum. Cost Extra as a Drill Package: Used - Hydraulic Bean 435 water pump & motor (cost extra) Located in the Western Region, USA View all the specs on Boart Longyear website for new models: http://www.boartlongyear.com/drilling-equipment/underground-coring/lm75/
