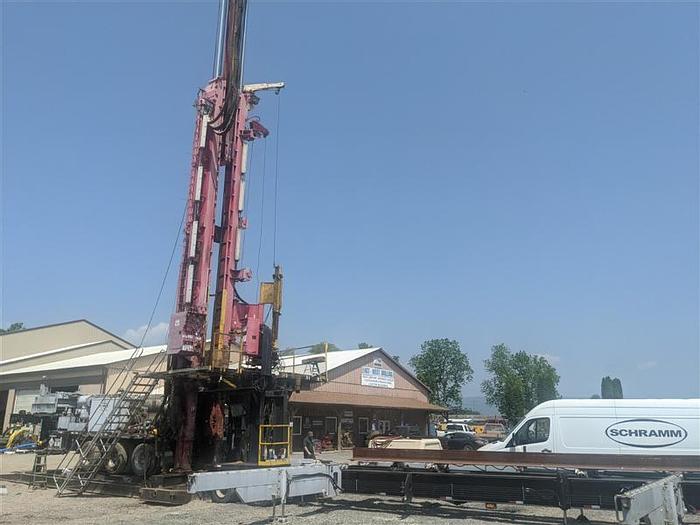

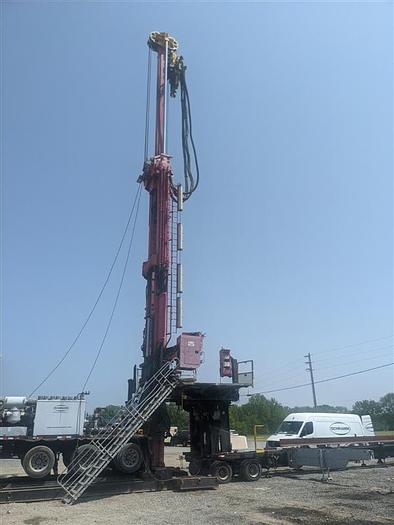

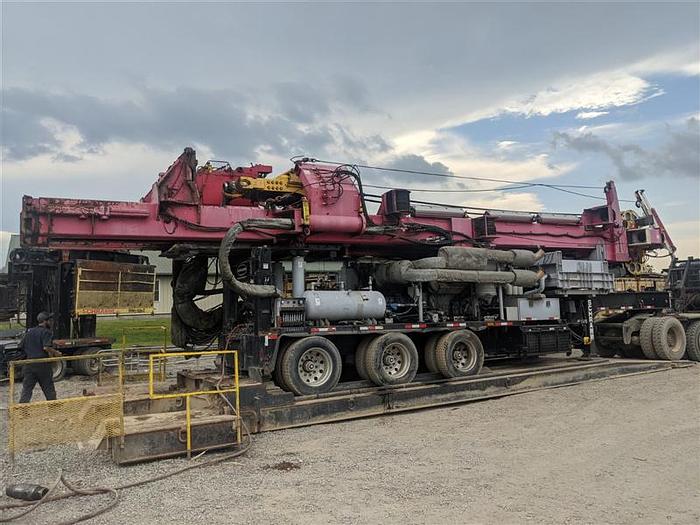

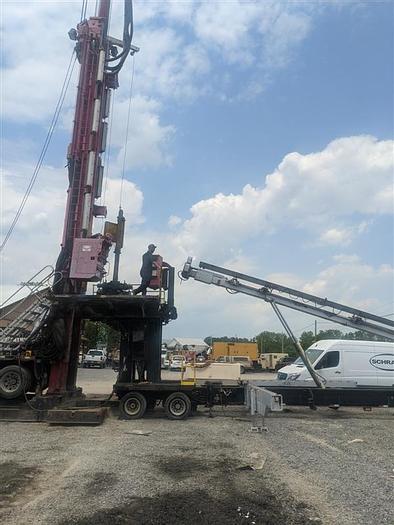

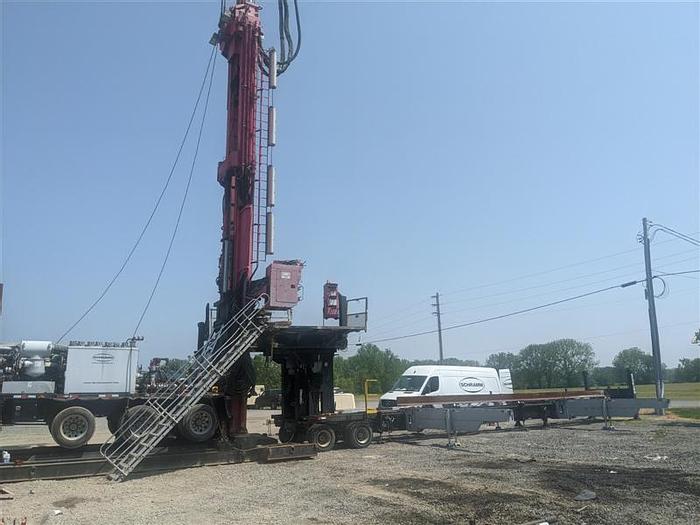

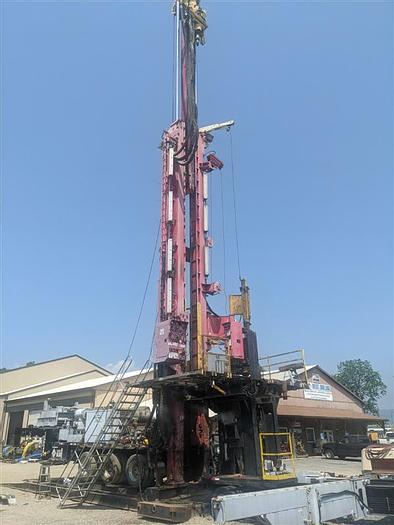

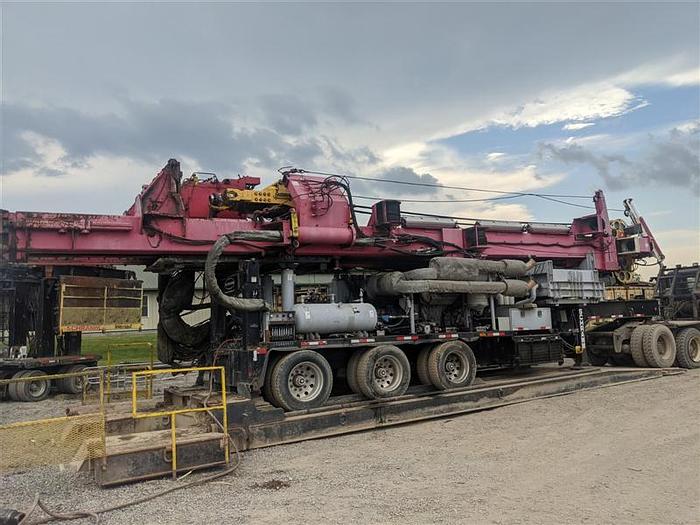

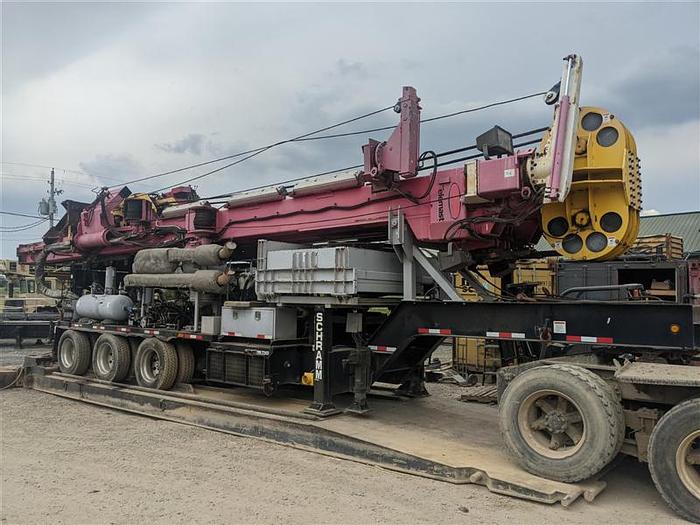

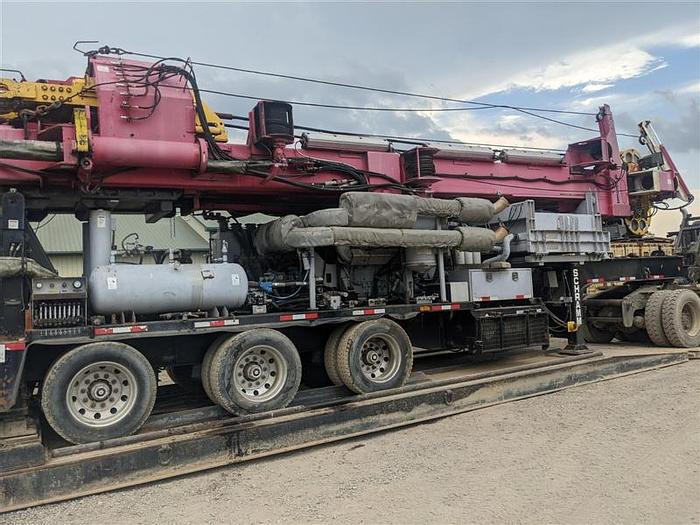

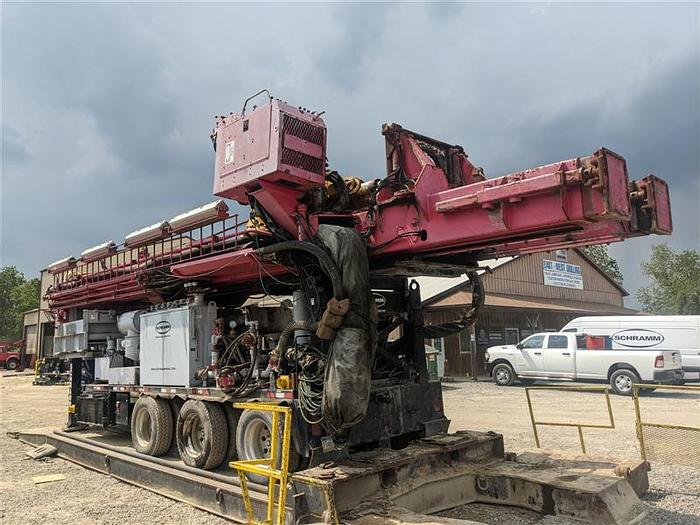

2012 Schramm TXD 200 Drill Rig

Mifflinburg, Pennsylvania USA @ EWD Yard

Sold

Description

SOLD

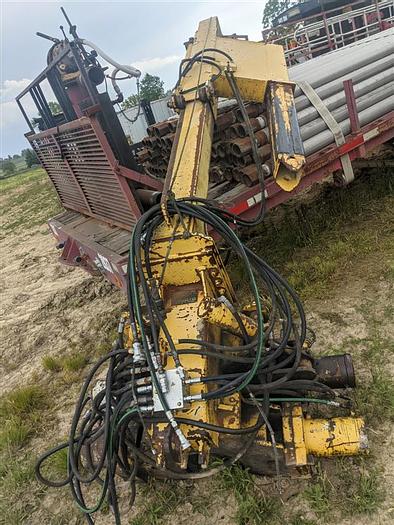

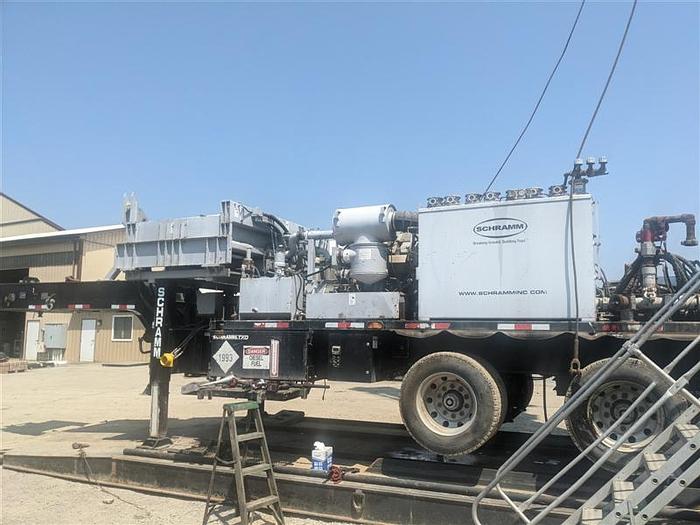

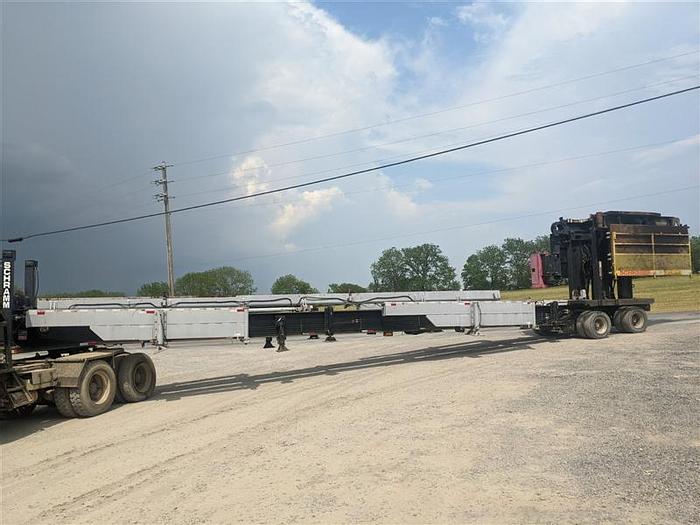

2012 Schramm TXD 200 Drill Rig Detroit DDC/MTU 12V-2000 Diesel Deck Engine Heavy duty, single reduction gearbox with 4 two-speed disc valve type hydraulic motors Variable rotation speed via HRC control 0-180 RPM @ 7,670 ft-lbs (10,399 N-m) 50 ft (15.24 M) head travel 200,000 lbf (890 kN) hoist capacity 100 fpm (30.5 m/min) hoist speed 32,000 lbf (142 kN) pulldown 200 fpm (61 m/min) pulldown speed Hydraulically retractable slip box Range III tubular 30 inch capability Planetary design with spring applied hydraulic release brake 9,600 lbf (42.7 kN) bare drum line pull 150 fpm (46 m/min) bare drum line speed Hydraulic jib boom swing and extend Auxiliary winch available The drills have low wear on the cables, bearing and pivot points as well as the Control panel All are in excellent/very good condition during last inspection LoadSafe pipe handling systems (hands free pipe loading system) mounted on Trailers Generator House with 2 Maraathon Model 431CSL6202-B211 60 HZ Phase 1 120/240V 122 KW 504 AMO or 3 Phase 277/480 155 KW 233 AMP poered by Perkins 6.6 L 1106 IR 2340 Shop air ,Hyd lift with Honda GX392,4000 Gallon feul tank and 4 lights on roof. Weatherford T425 Triplex Mud pump powered by John Deere 6135 diesel engine (Tier IV) - rated 500 HP, 6.50 Plunger 900 PSI, MCM 4x5x14 Super Charge Centrifugal pump with soap mixing tanks in back 750 BBL Water tank with hydraulic lift dog house Crew changing house Crew House 8000' ft of drill pipe (4" DP New 30'6" NC40) (4) 6-1/2” Drill collars Every unit is clean & straight and it is a very nice package in excellent/very good condition after inspections in 2020 Note: a container of spare parts cost extra Located at Mifflinburg, PA yard USA

Specifications

ManufacturerSchramm
ModelTXD 200 Drill Rig
Year2012
ConditionUsed
Stock Number15634

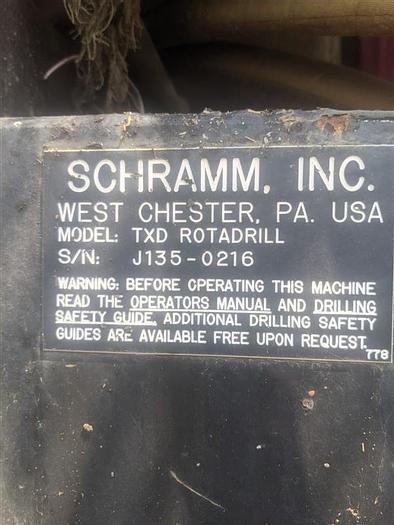

Serial number j135-0216, trailer vin#1K9AD40C1C3268138.
Torque0-90 RPM @ 17,750 ft-lbs (24,066 N-m)
Rotation speed0 - 180 RPM ·
Table opening30" inches (768 mm) diameter with table retracted
StatusSOLD
