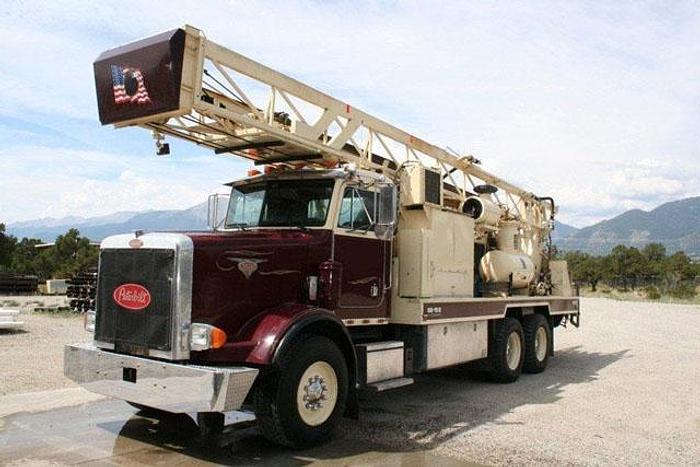

1995 Speedstar SS-15-III - SOLD

SOLD 1995 Speedstar SS-15-III drill rig 55,200 lbs max hook load with block at bottom; 32,000 lbs working hook load with block at top. Sulliar 900 cfm / 150 psi Air Compressor Structured steel frame complete with mast hinge posts, mast rest. and operator's platforms. Power transfer case with enclosed oil bath, full torque type with helical gear, high speed roller chain running over heat treated sprockets to reliably distribute power to various drill components. Double drum, each equipped with two-plate clutch and 6" x 22" brake band. Single pull 15,000 lbs on bare drum. Two front and two rear hydraulic leveling jacks. Each equipped with automatic lock check valves and swivel base plate. 35' ft working height tower. Rated gross capacity 75,000 lbs. Shock-proof 12 volt lighting system with five (5) lights. Hinged type breakout tongs and various lug jaws. Fitted for diameters required. Rotary table with 10" opening (Hydraulic Drive) Chain hydraulic motor feed system with pulldown to 26,000 lbs, pullback to 15,000 lbs, or cable-cylinder feed system with pulldown to 26,000 lbs, pullback to 25,000 lbs. Kelly's with 4 1/4" diam x 24' ft long, and 5" diam x 24' ft long, and 5 1/4" diam x 24' ft long. SpeedStar swivel. Single line sand reel pull 6,000 lbs on bare drum. Water injection pump. Lubricator for DHD drilling. Electric over air operated. Capacity 7 gal. Pipe rack mounted on right hand side. No Mud Pump on board, but room for a 5x6 or 5x8 size. Mounted on Peterbilt truck CAT 3406 Diesel Engine (PTO)
