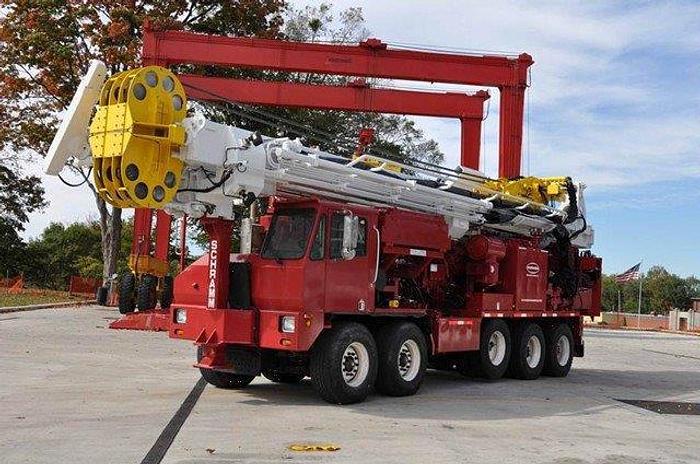

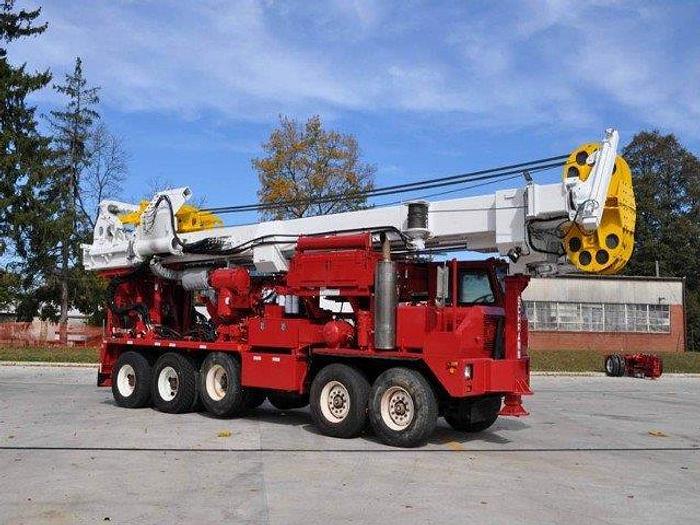

2006 Schramm T130 XD Drill Rig

2006 Schramm Model T130XD / Reconditioned and Ready to Drill Unit Engine ? MTU 12V?2000TA DDEC, 760 bhp (567 kw) @ 1,800 rpm Hydraulic System ? Eight hydraulic pumps, three fixed displacement type and five variable volume piston type, provide hydraulic power for all rig functions. All hydraulic circuits are fully filtered, protected by relief valves and include an oil cooler. Shutoff valves are provided at each tank suction outlet for ease of service. Tophead 2 Motor High Capacity (4") Tilt: applications. Unit is fitted with two hydraulic motors. Motor displacement and performance must be specified. The top head hydraulically tilts to aid pipe and casing handling. Tophead swivel includes a 3" diameter access port to allow sampling equipment to be run through the rotation unit. Includes hydraulic lock pins to retain top head in the drilling position. Special pins are mounted to the top head trunnion mounting bars which allow the use of elevator links for lifting heavy strings of casing with the hoist system. Dual Rotation Motors, low speed, high torque, hydraulic motors. 0?102 rpm @ 150,790 in?lb (17,036 N?m). Rotation Torque Limiter ? Control panel mounted valve to regulate hydraulic pressure to the rotation motors. Mast Tilt ? The two mast tilt cylinders are cushioned. 2006 Schramm Model T130XD Reconditioned and Ready to Drill Cooling System ? Three core, side by side package, 130°F (54.4°C) ambient rating, with 60" hydraulically driven fan. Control Panel ? Located on the left hand side, the swing out style control panel stores under the mast for transport and includes full instrumentation and fold?up operator's and helper's platforms. A valve section is included for operation of a customer supplied BOP. Tool Box ? A lockable tool box is located on the right hand side of the rig. Capacity ? 9 cu ft (.25 cu m). Electrical System ? 24V DC, 140 amp alternator, two 12V batteries, mast and work lights, circuit breakers. mm) plumbing. Telemast, 50' Travel (With a floating sub installed, is 50’ clearence between the end of the sub and the top of the table) Telescoping construction permits long head travel and working height, yet short overall length in the transport position. Equipped with a 32" (813 mm) cylinder operated slide, the mast is free?standing, all pullback loads are directed into the ground, not the rig frame. Hydraulically operated mast feet offer adjustability to work over top of diverters or protection equipment. Mast feet offer 41" (1.04 m) of stroke and are equipped with mechanical locking devices. Mast base height is adjustable to 54" with wheels on the ground. Outriggers can increase clearance by an additional 41" offering up to 95" of possible working room below the table. Feed System ? The top head is raised and lowered by hydraulic traverse cylinders through special wire rope and large diameter Nylatron sheaves. As the tophead is raised, the inner mast section extends by a ratio of 1:2 until it reaches its fully extended position at 50’ of clear head travel. increase clearance by an additional 41". Mini Lube System Multi point system to simplify lubrication of drill components. Provides centralized grease fitting locations for top head, crown, jib boom and pipe loader. RotationLock for DH Mtr, Std Locking mechanism to prevent top head gearbox from rotating during downhole directional drilling operations. Reduces spindle to table clearance by 4". Total spindle to table clearnace is 48' 6". For 3" ID Slow Feed Drill?Up Valve Permits regulated pressure control of slow feed circuit when hoisting. Sold Without Compressor 2006 Schramm Model T130XD Reconditioned and Ready to Drill Crane Carrier, 10x4 plus pusher axle, 117,500 lb (53,298 kg) GVWR, Cat C?13, 410 hp @ 2,100 rpm, Jacobs engine brake, Fuller RTO?14908LL, 10 speed transmission, front towing eye. Single front outrigger is mounted on carrier frame. Two rear outriggers are integral members of the drill rig frame. Jib Boom, Hydr Swing & Extend 140° swing and 40" (1,016 mm) retract and extend, permits the winch line to be centered over the borehole. The standard hydraulic jib boom provides the ability to handle drill pipe while working around the single pipe loading arm. Auxiliary Winch Controls ? Hydraulic valves are mounted on the right rear side of the rig to allow the helper to operate the loading arm, jib boom and the winch. Winch has two speed control valve for added operator control. Includes RH helper's platform. Winch, 9,600 lb (150' x 1/2") 9,600 lb (4,354 kg) @ 151 fpm (46 mpm) bare drum, 150 ft (46 m) of 1/2" (12.7 mm) Dyform 18 high strength low rotation cable. Drill rig painted Schramm Red. Mast assembly painted Schramm Ultra White.
