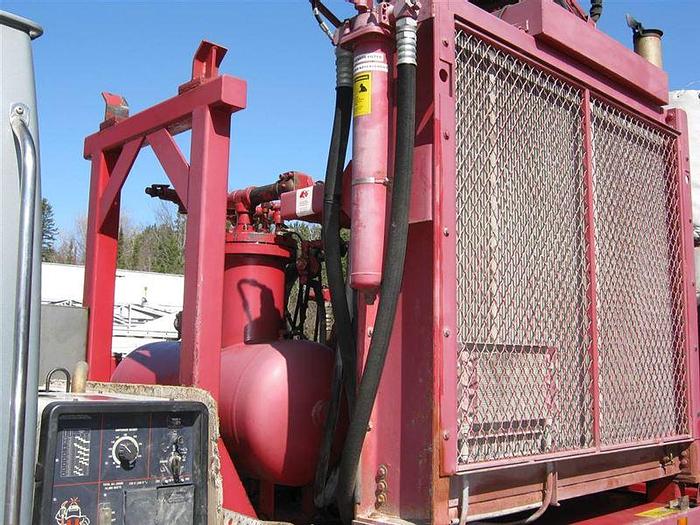

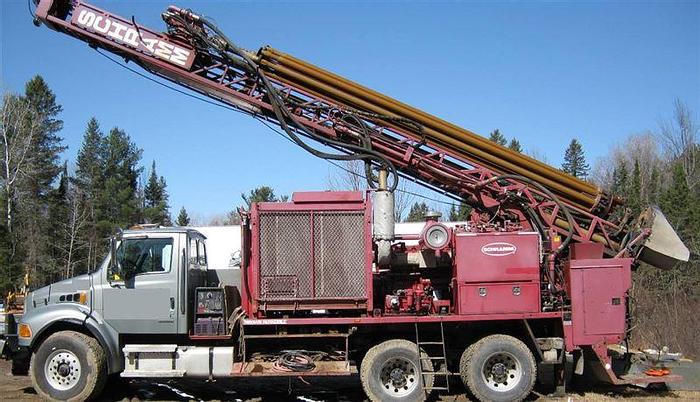

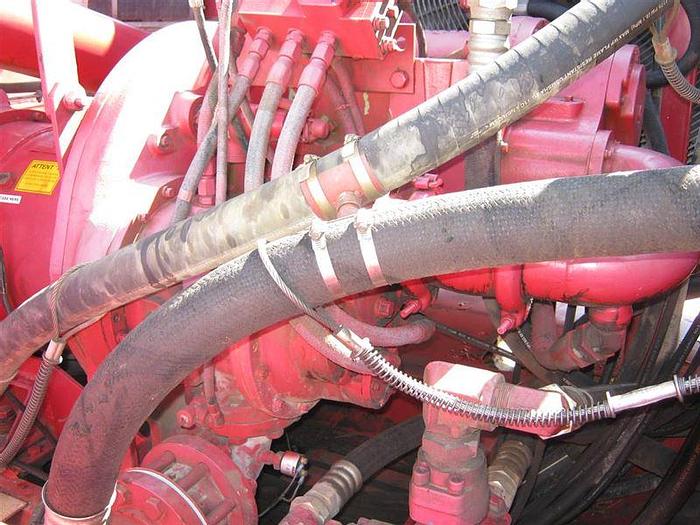

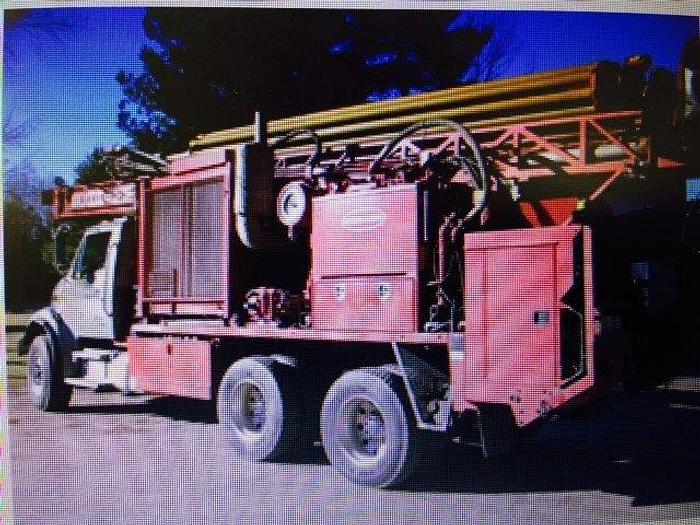

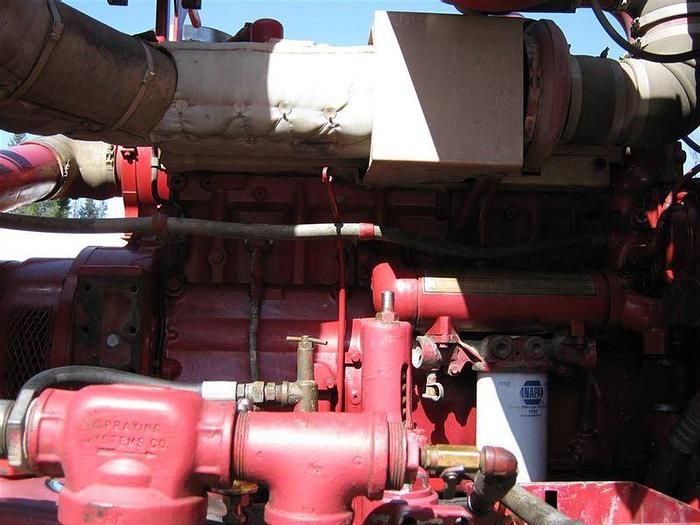

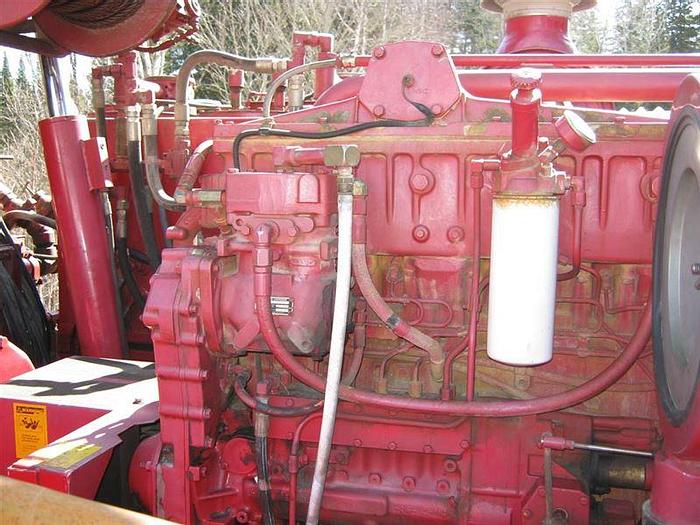

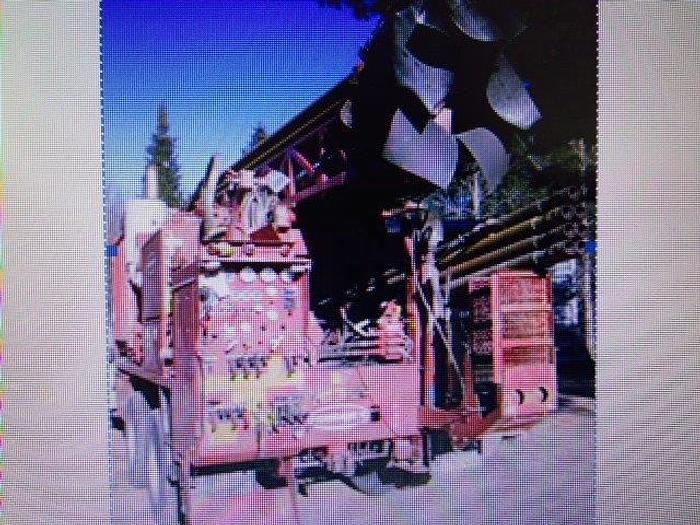

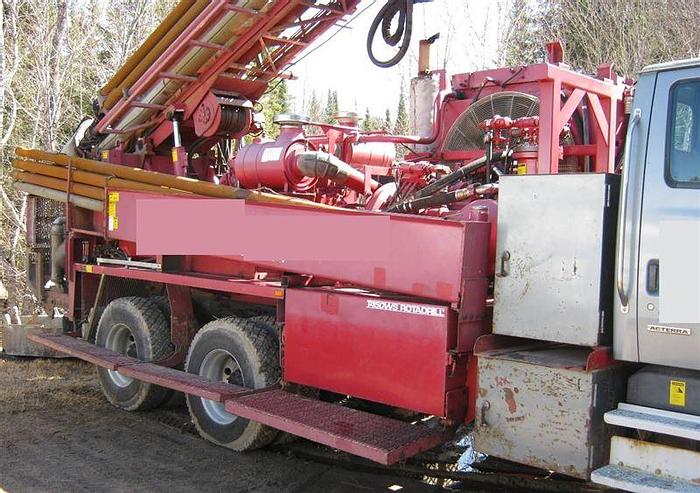

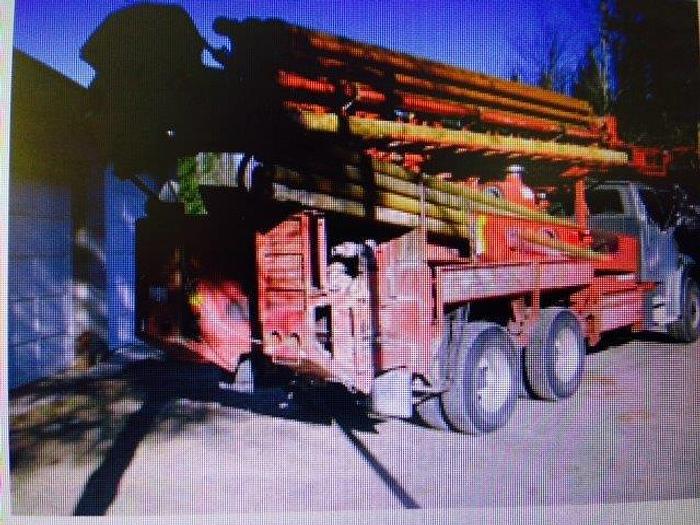

2004 Schramm T450WS Drill Rig

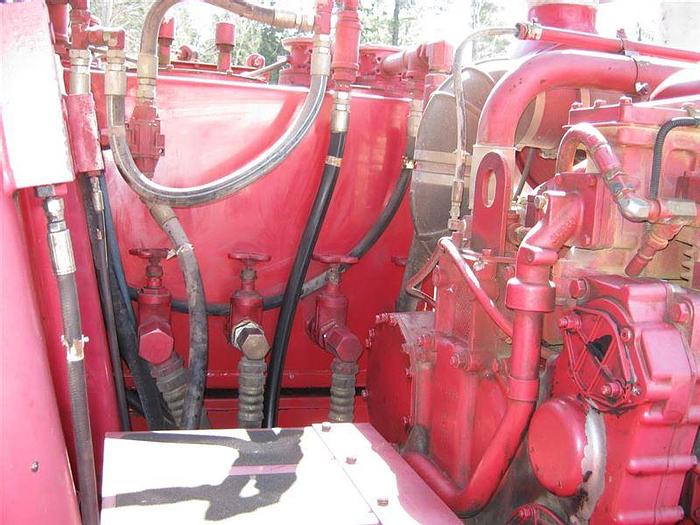

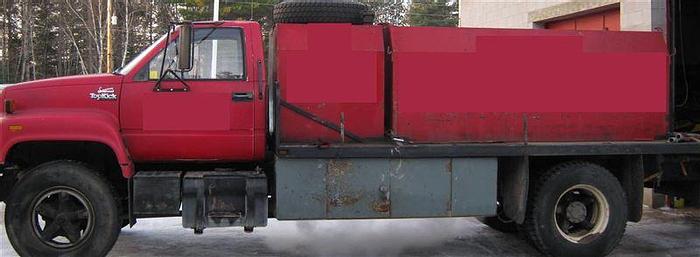

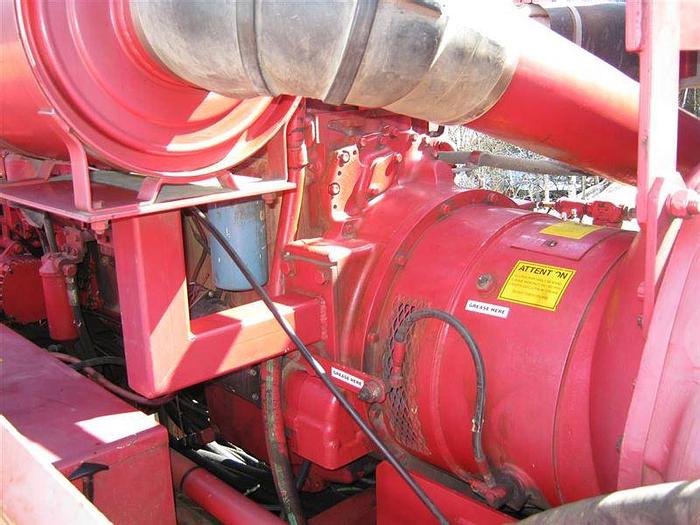

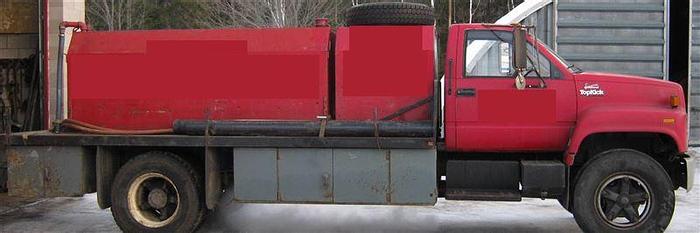

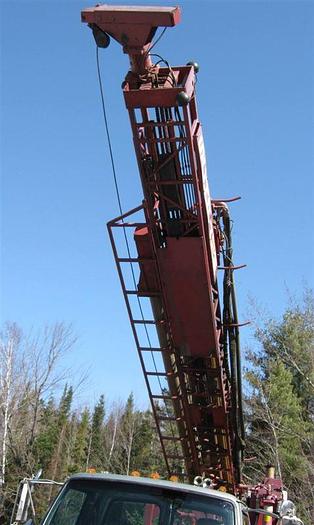

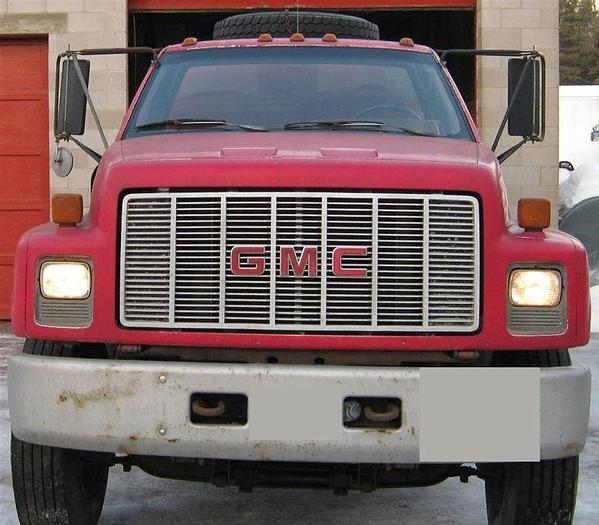

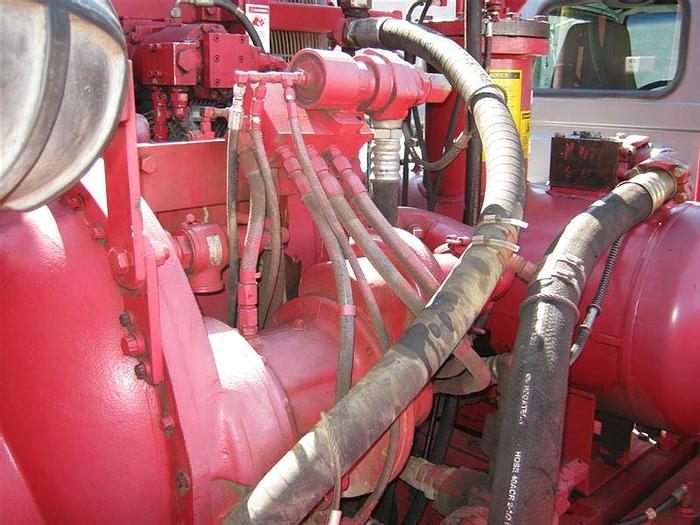

2004 Schramm T450WS Rotadrill Rig & 1992 Chevy Water Truck Low 6,962 hours Sullair 900 cfm / 350 psi With Clutch CAT 3406 Diesel Engine Mounted on a 2004 Sterling Acterra Truck with a total of only 32,850 miles CAT 3126 diesel engine @ 300 HP Set Back Axle – Truck Eaton Fuller RTO-11909ALL Transmission Front Axle 18,000 lb. Merito RT-40-145 R-SRS Tandem Rear Axle @ 40.000 lb. 5.29 Axle Ratio 219 inch wheel base with 60 inch rear axle spacing. Mast, 28’ 6” Travel Special Slow Feed Drill-Up Valve Upgrade Traverse Cylinder, 28’ 6” Travel Increase cylinder rod diameter to 2.75”. Pulldown increased to 22,000 lbs. Pullback decreased to 27,000 lbs Rotation Motor, 40.6 cu.in Top Head, Single Motor, 28.5’ Top Head Rotation RPM 0-110, Torque 75,390 in.-lb. Split Table Assembly, 4 ½” Several custom bushings, Custom made hydraulic open & close table Breakout Wrench 60” Heater, Electric Deck Engine Block Tool Lubricator, Piston Pump Stand Pipe, 2” Aux Mud Out riggers , Rear Two 4 inch bore, 36 inch stroke Front out rigger , Special Custom built, telescoping outrigger, Truck hood can be completely opened, no butterfly doors required Jib Boom, Hydr Swing & Extend Lazy Susan, 8 rod BO (4.5”) Sliding Top Head, Hydraulic Auxiliary Winch Controls Winch 9,600 lb. (150’ x ½”) Foam Injection, Cat 35 GPM Angled Rack, 18 inch rise Pipe Rack, 2w x 4h Full Side Walkways Extra Service Air Lines plumbed in Drill Pipe (4.5” x 3 ½ API Reg x 20’) 500' feet of Drill Pipe 20' x 4-1/2" included Accessories included with Rig Wilden M-15 Mud pump and hoses Mud pit, (carried under mast while moving) Stabilizer Bar (12 foot x 7 inch), (mounted inside mast) Stabilizer Bar for 8 inch hammer, (kept as a unit and mounts on the side of the mast) Running IR, QL60, and QL80 hammers Arc Welder, Hobart, Champion 10,000, low hours only 154 Barber Floating Cushion Sub, model PD6-2 X-Drill system and air activated diverter head Controls and Divertor Head mounts in minutes Misc., Tri-cone and Hammer Bits, Wrenches, Bushings and Hoses included Located in the N.E. Region
