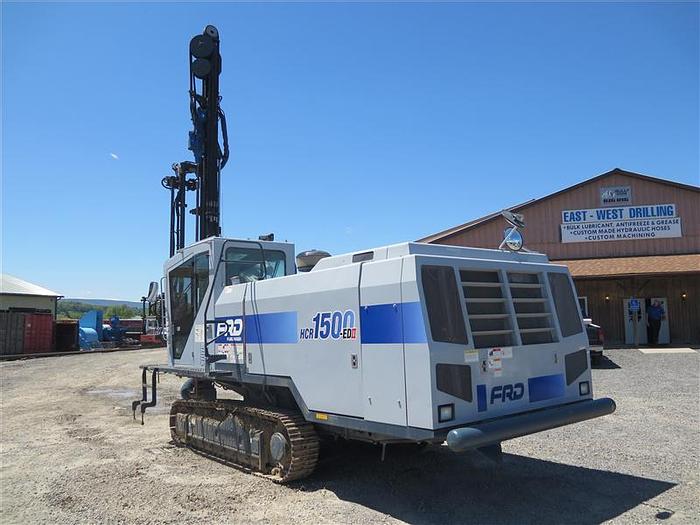

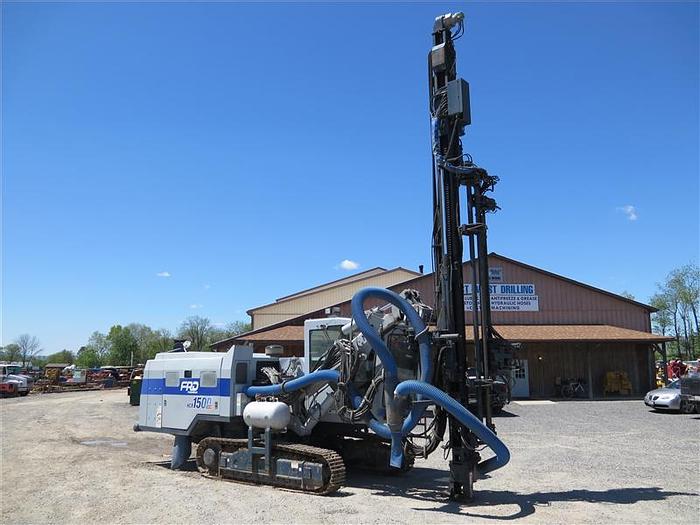

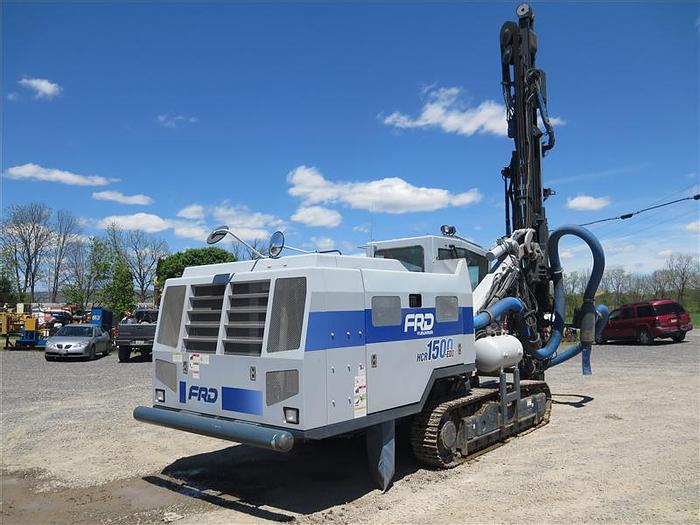

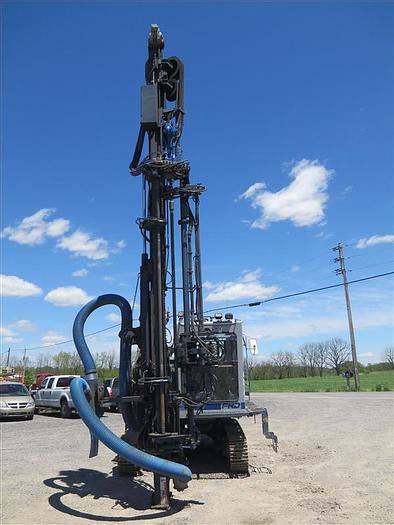

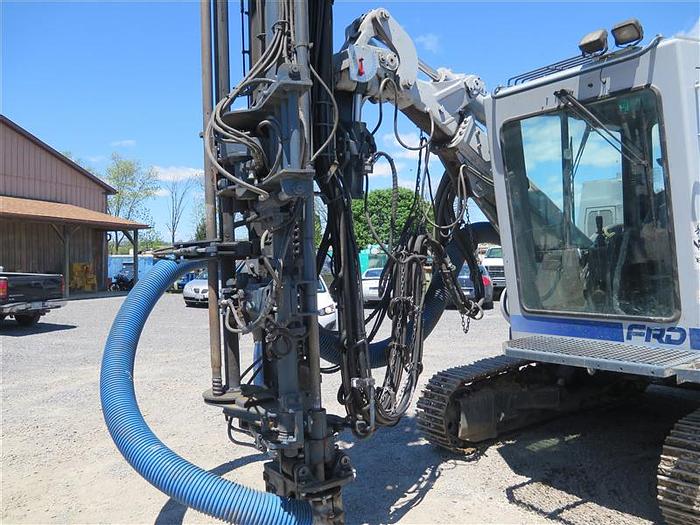

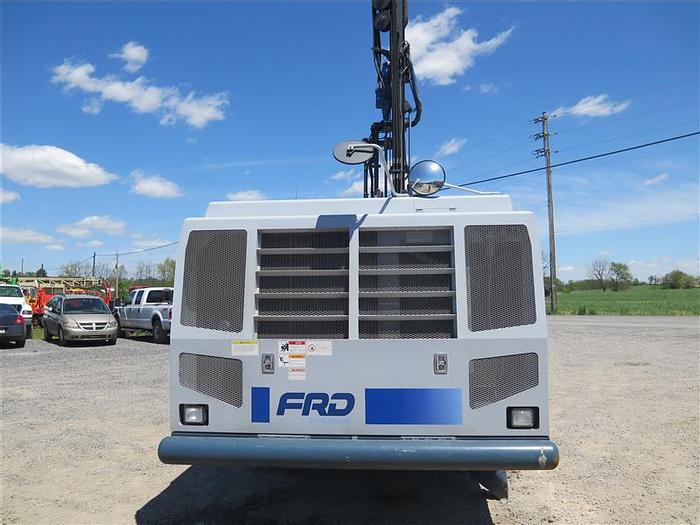

2015 Furukawa HCR1500-ED II Drill Rig

2015 Furukawa HCR1500-ED II Drill Rig Crawler Mounted 1730+ machine hours and 617+ drifter hours. S/N 1454407 OPTIONS ON MACHINE CMI 3 ANGLE INDICATOR REAR BUMPER WATER SUPPRESSION WEBASTO COOLANT HEATER SET UP FOR T51 MALE FEMALE Specifications for the HCR1500-ED II / HCR1500-D20 II: Weight & dimensions   US Standard Metric Operating weight with fuel/oil (with ROPS/FOPS cab if applicable) 39,286 lb / 40,616 lb 17,820 kg / 18,420 kg Overall length 32'-10" / 33'-5.5" 10,010 mm / 10,200 mm Ground contact length 9'-1" / 9'-5" 2,780 mm / 2,865 mm Overall width with pre-cleaner 12'-2" / 12'-8" 3,720 mm / 3,860 mm Overall width 7'-10.5" 2,400 mm Width of shoe 13" 330 mm Overall height shipping 11' / 11'-2" 3325 mm / 3,400 mm Drifter   Model HD715 II Weight 551 lb 250 kg Impact rate 2,250 - 2,500 bmp Number of rotations 0 - 150 rpm Undercarriage Ground clearance 20.4" / 19.2" 515 mm / 495 mm Oscillating angle ±7.5° deg Travel speed 0 - 2.6 mph 0 - 4.2 km/h Max grade of hill climb 57.7 (30°) % Engine Make/model CATERPILLAR® / C9 Type Turbocharged and air to air after cooled diesel, direct fuel injection, electronic governor. Rated output 348hp / 2200rpm 260kw / 2200rpm   Meets Tier III and EU stage-3 Low-emission, low fuel consumption Tier III Caterpillar® engine meets major exhaust emissions regulations in US and Europe. Net usable output available at flywheel of the installed engine with all the standard accessories. SAEJ1349, SAEJ1995 conditions. Piston displacement 2.3 gal 8.8 liter Fuel tank capacity 166 gal 630 liter Hydraulic pump Type 2-variable displacement axial piston pumps; largest for travel, impact and feed, smaller for drifter rotation. 3-gear pumps for cooling and dust collector, boom and rod changer. Hydraulic oil tank capacity 63 gal 240 liter   SpecificationsHCR1500-ED II / HCR1500-D20 II   US Standard Metric Compressor AIRMAN® Model PDS290-S15B Free air delivery 476.4 CFM 13.5 m3/min Working air pressure 149 psi 1.03 MPa Boom Model JE326-142 / JE325-141 Lift angle (up-down) 45° - 20° / 45° - 25° Swing angle (right-left) 38° - 7° / 35° - 7° Extension length 2.9 ft 900 mm Guide shell Model GH885-41 / GH830-51 Length 26'-2" / 33'-5" 8,000 mm / 10,200 mm Feed length 26'-2" / 33'-5" 4,700 mm / 6,763 mm Swing angle (right-left) 38° - 38° / 25° - 90° Tilt angle 170° Maximum pulling force 6,969 lbs 31kN Dust collector Suction capacity 1,400 CFM 40 m3/min Number of filter 6 Rod arrangement Type Rod changer Number of rods 6 + 1 / 4 + 1 (starter rod) Bit and rod Bit diameter 3.5" - 5" 89 mm - 127 mm Type of bit Cross, Button, Spike Rod size 51R Rod length 12' / 20' 3,660 mm / 6,100 mm Starter rod length 14' / 20' 4,300 mm / 6,100 mm Available in Mifflinburg, PA yard USA (East West Drilling is a distributor) Leading technology for BLASTHOLE DRILLS HYDRAULIC BREAKERS and RELATED attachments In 1875 Ichibei Furukawa founded Furukawa Co., LTD. to mine and smelt copper Today, Furukawa Rock Drill USA is a leading manufacturer of rock drills and attachments for Skid Steer, Mini Excavators, Backhoes and Excavators FRD USA Attachment Division (formerly marketed as Kent Demolition Tool) is a leading brand throughout North and Central America FRD USA Rock Drill Division offers a complete line of advanced drills and accessories for construction and quarry sites Contact us by email or Phone: 570-966-7312 for your Next New Drill, Service, or Parts Order in the state of PA, OH, VA, NJ, MD, DC only. Outside Sales Tony Morell (East PA, NJ) mobile: 570-780-9325 or Reggie Keller (West PA, OH, MD, VA, DC) mobile: 570-217-7636 East West Drilling, Inc. is a licensed distributor for the state of Pennsylvania, USA  Contact Us for more information, specs, and prices on each drill model We can offer Drill Pipe, DTH Hammers & Bits, Parts, and Tooling as needed
