0 FMC Bean 435 Water Pump

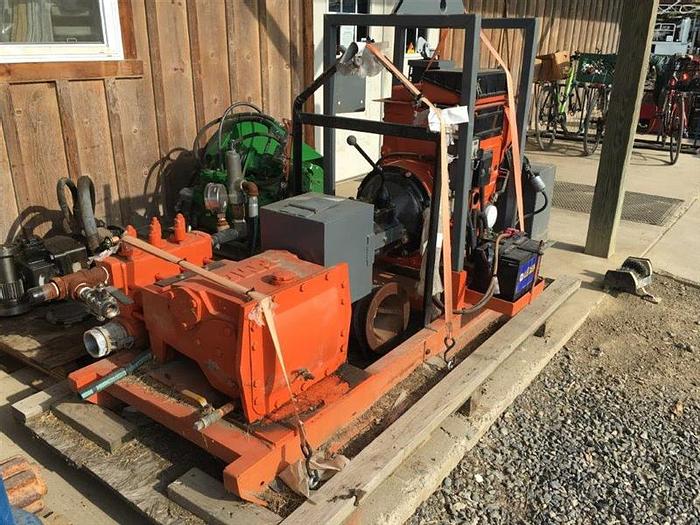

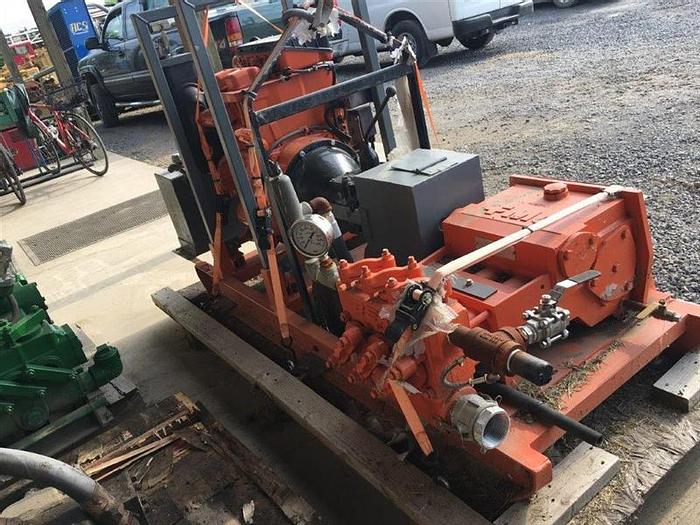

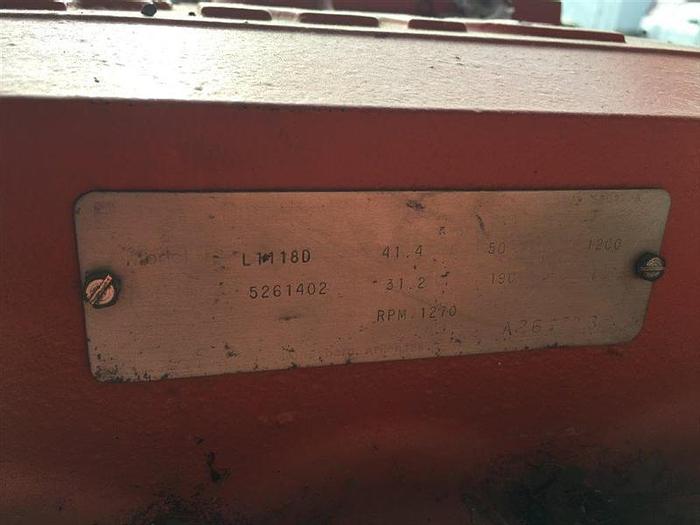

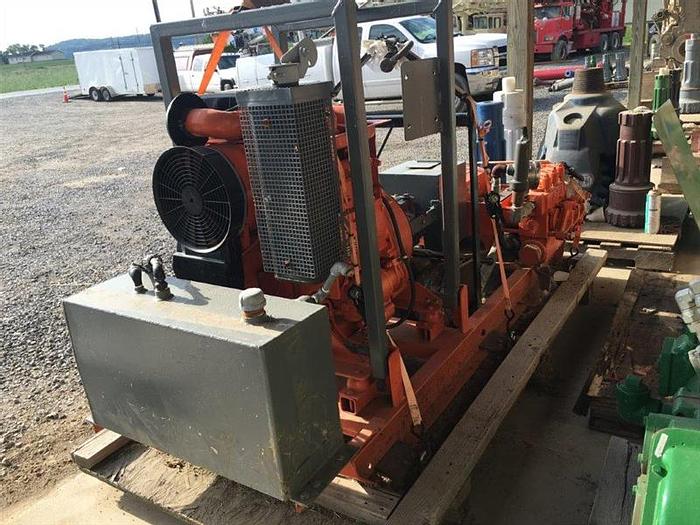

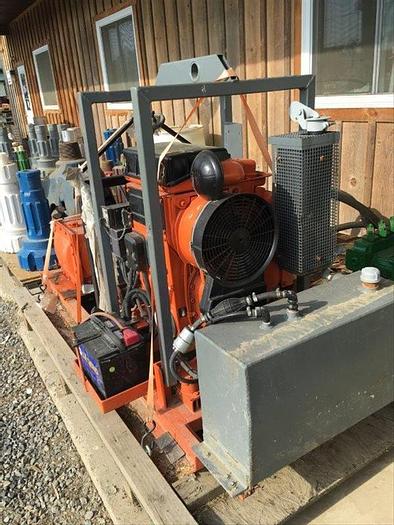

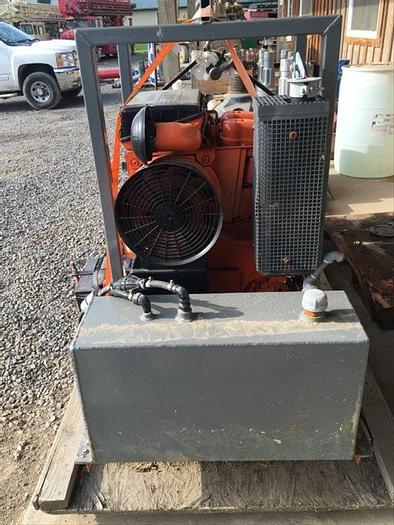

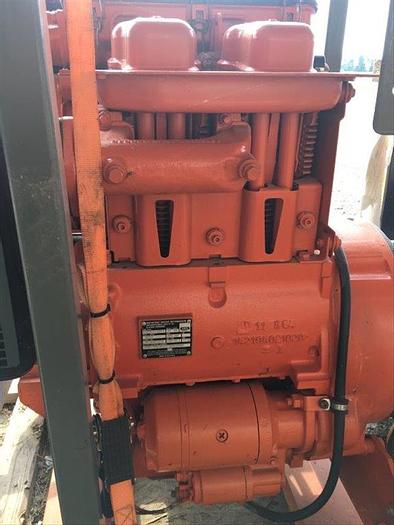

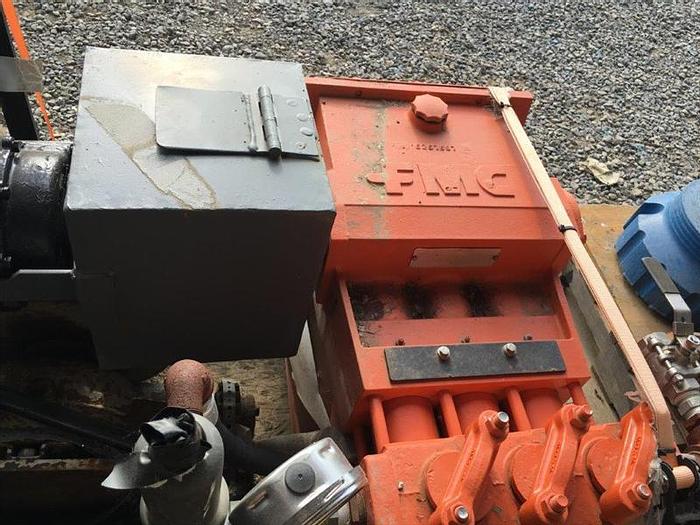

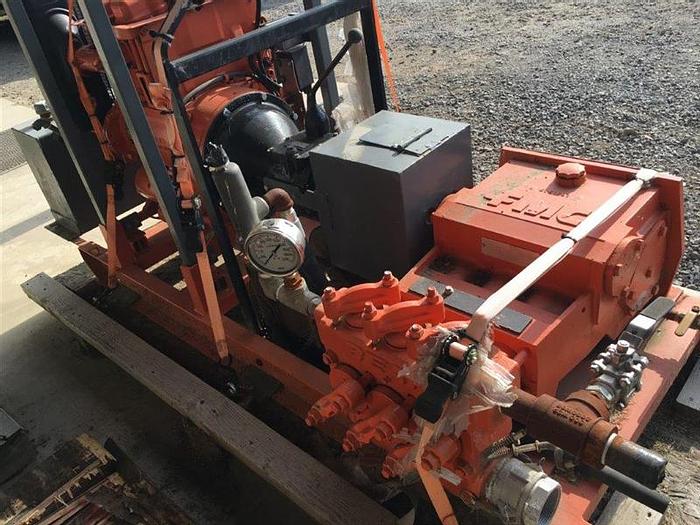

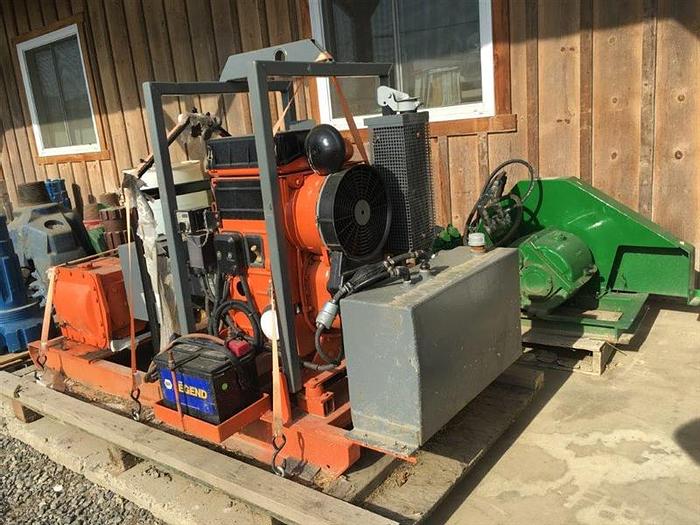

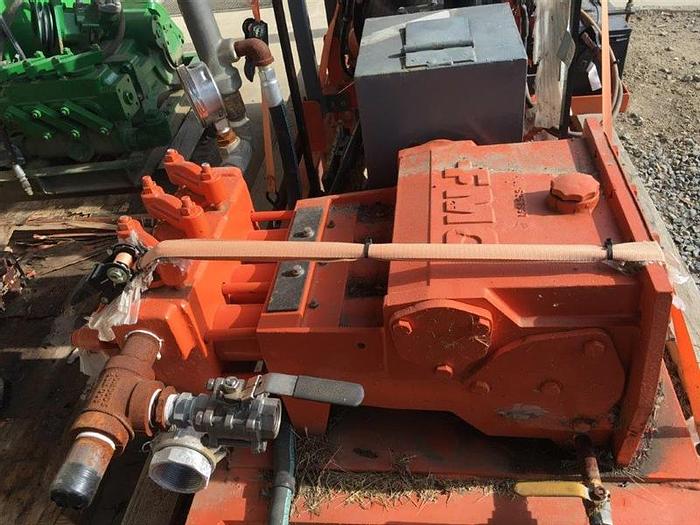

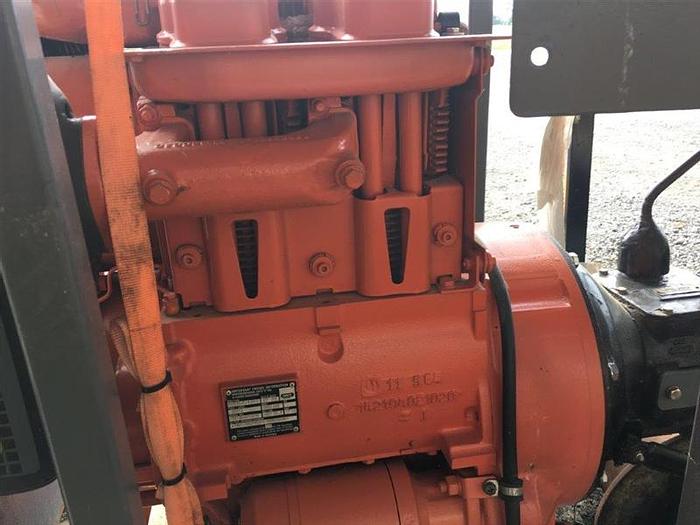

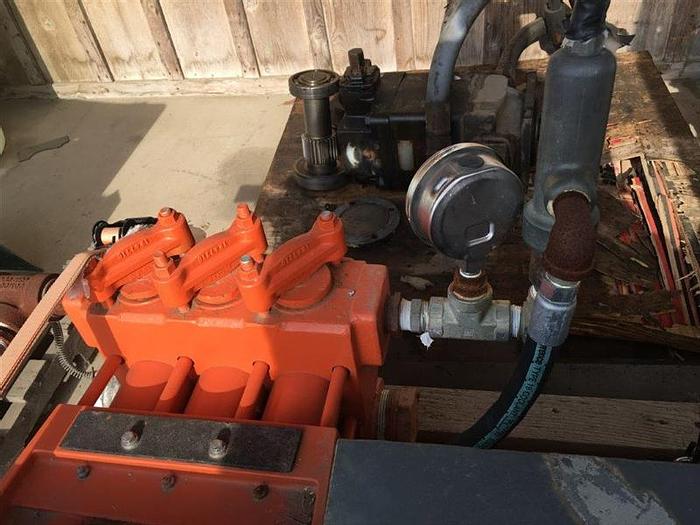

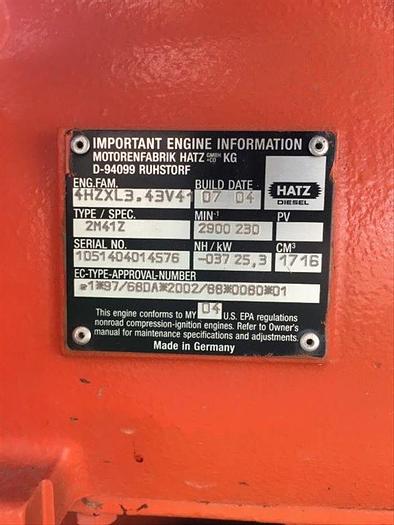

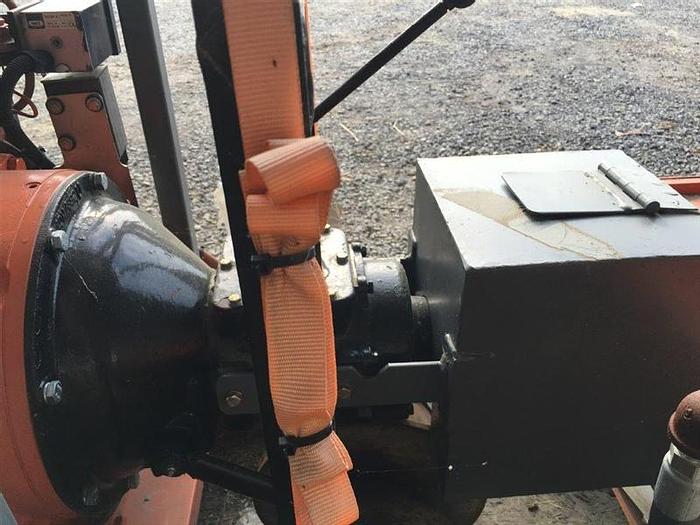

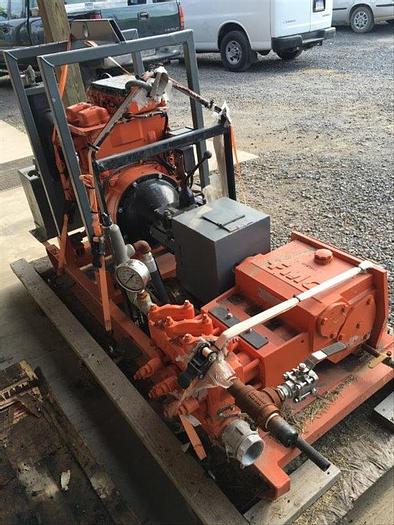

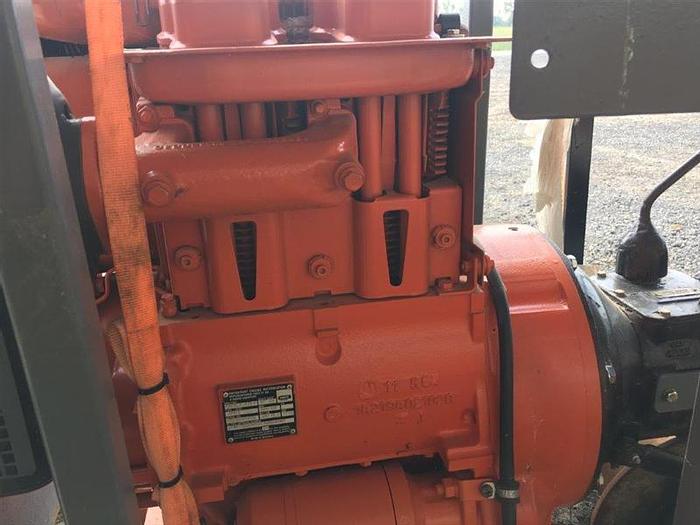

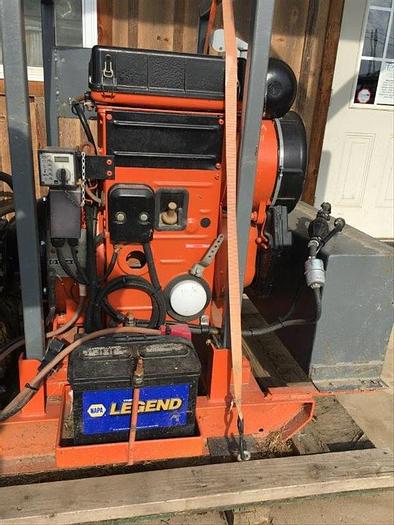

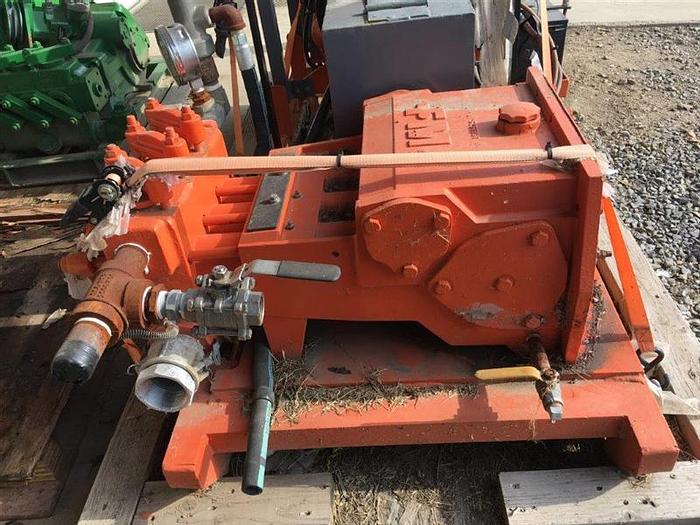

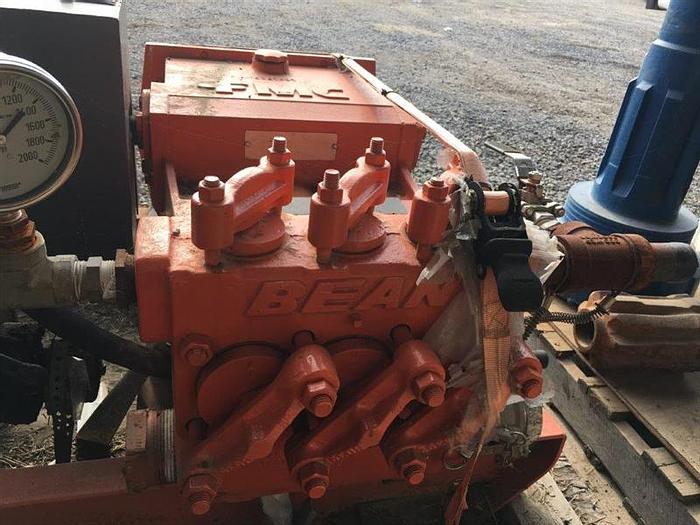

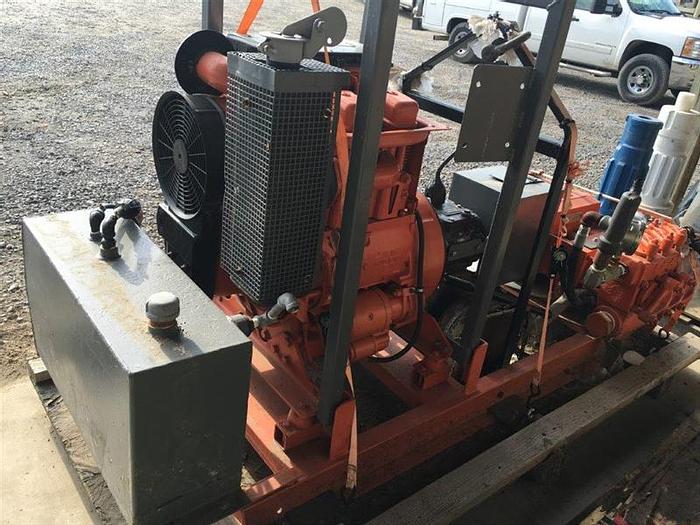

Complete Rebuilt FMC W1118D Horizontal Triplex Piston Pump Also Called a Bean 435 Water Pump powered by Hatz Diesel engine Newer Paint Job Skid Mounted Stroke Length - 2.75 Inches (6.985 cm) Frame Load Rating - 6,000 lbs (2,721.6 kg) Pump Weight (Average) - 460 lbs (208.7 kg) Direction of Rotation - Top of pinion shaft away from head Internal Gear Ratio - 3.6:1 Intermittent Duty Speed Rating - 1,275 RPM Continuous Duty Speed Rating - 900 RPM Ball Valve Max Speed Rating - 1050 RPM Mechanical Efficiency - 85% Lubrication System (Standard)  - Splash, Gravity Return Lube Oil Capacity -  1 Gallon (3.78 Liters) Lube Oil Type -  SAE 30 Maximum Fluid Temperature - 140 °F (250 °F Capability) / 60°C (121°C Capacity) Minimum Fluid Temperature - 0 °F (-20 °F Capability) / -17.8°C (-28.9°C Capacity) Standard Suction Size - 2.50 Inch NPT Standard Discharge Size - 1.25 Inch NPT Fluid End Material - Ductile Iron, Nickel Aluminum Bronze Valve Types -  Disc Valves, Ball Valves, Abrasion Resistant (AR) Valves Hydraulic Motor Mount - SAE C - 2 Bolt with 1.25”-14T / SAE C - 4 Bolt with 1.25”-14T Maximum Pressure 1,000 PSI / 68.95 Bar Located in Mifflinburg PA
