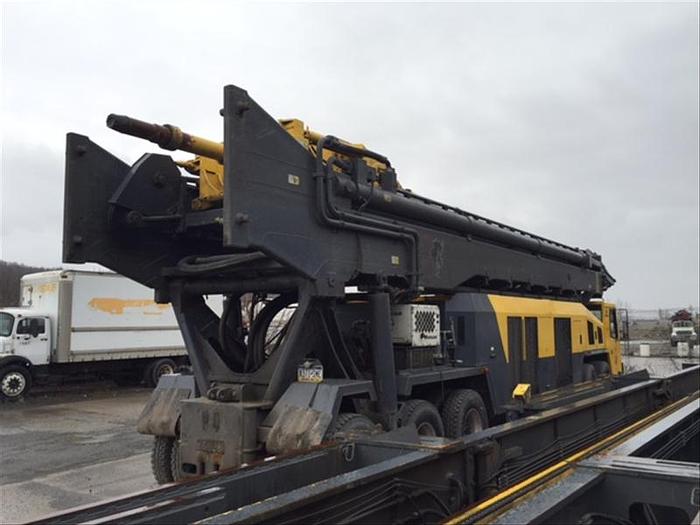

2014 Atlas Copco Predator Drill System Package

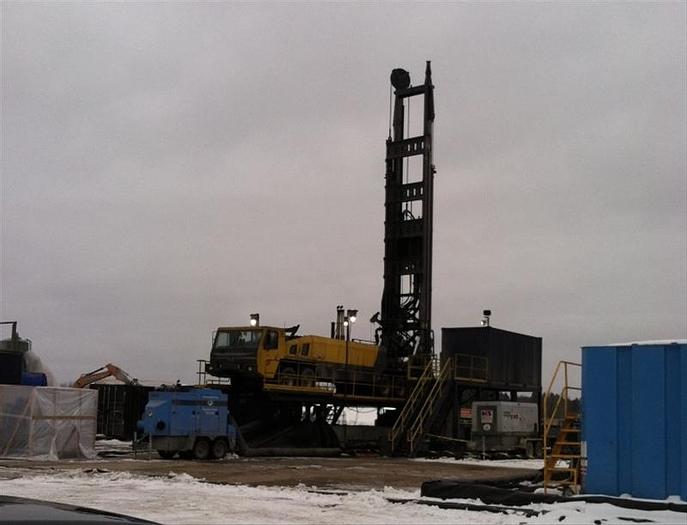

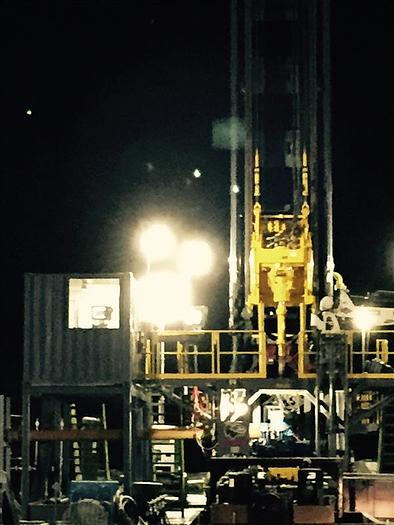

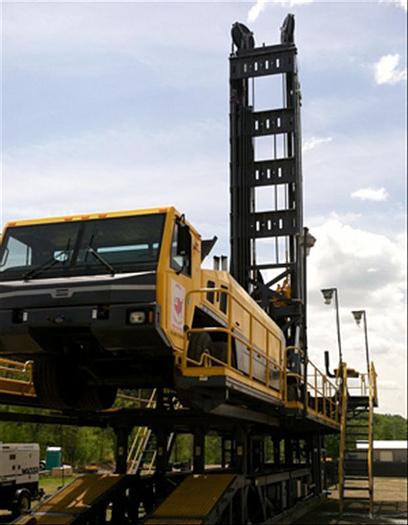

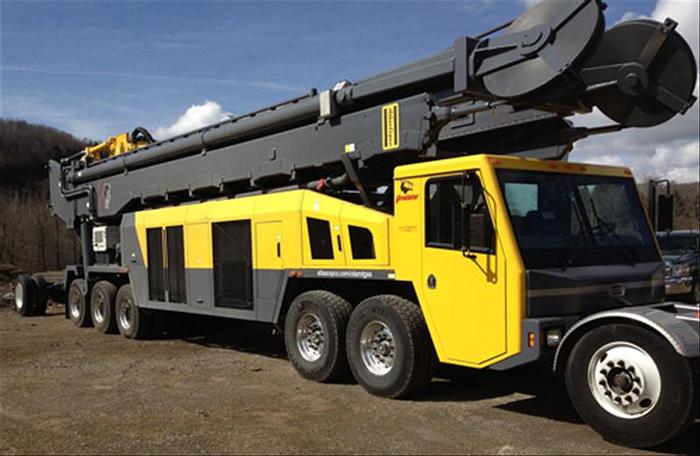

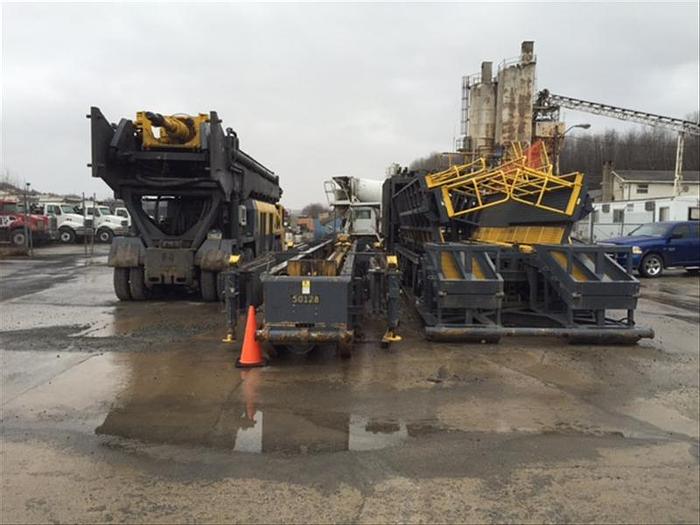

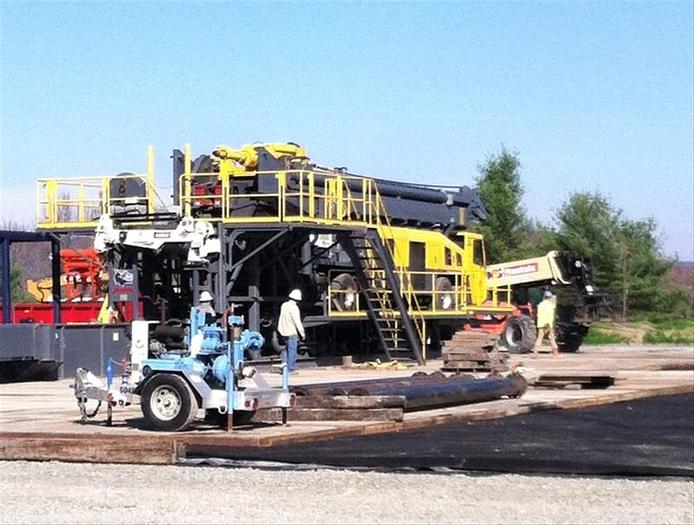

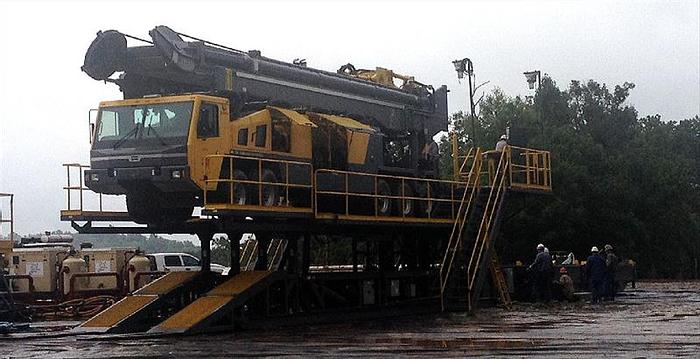

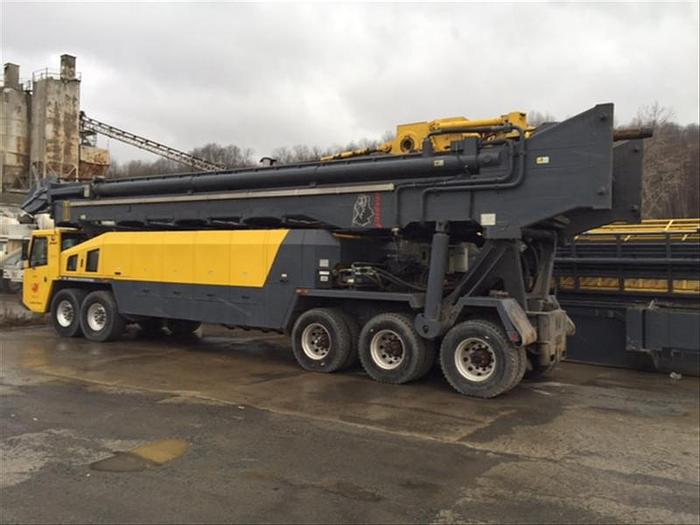

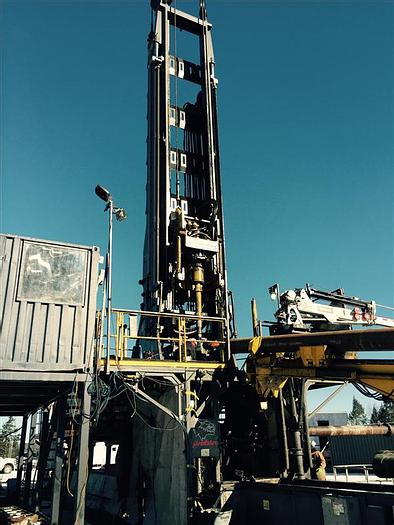

2014 Atlas Copco Predator Mobile Drilling System Package C-27 Caterpillar Deck Engine - 950 hp Fuller RTO F-14908LL 8 speed transmission 500 hp Hydraulic motor 69,000 lb tridem rear axeles 44,000 lb tandem front axels 445/65R22.5 Tubeless Radial Steer Tires 11R22.5 14 Ply Tubless Radial Rear Tires 150 Gal Fuel Tank Range III hydraulically telescoping tower rated 200,000 lbs maximum hook load Hydraulically actuated, two speed, tilt out, top head drive assembly rated 30,000 lbs torque 5” ED Spindle Predator substructure support system 42” floor opening, 27 ½” table opening, 17 ½” slip bushing Hydraulic slips and roughneck 10’ x 24’ x 8’ work floor 4.2 Ton electric floor crane 3,000 psi air/mud piping Oilfield night lighting package Off-board generator connection Self- contained drillers console with military grade flat screen monitor Easy access hydraulic valve bank Catwalks, railings, fold up rig floor deck Self-contained skid mounting Predator hands free tubular loading system 4 ½” to 24” Diameter capability from 30’ to 42’ lengths 9,000 lb maximum handling weight capacity Remote loading and driller console connection operating controls Self-contained oilfield skid mounted 42" floor opening, 27 1/2" Table opening, 17 1/2" Slip Bushing 4.2 Ton Electric Floor Crane 3,000 PSI mud piping Overall Length 54' 6" Overall Width (Transport) 8' 6" Overall Width (Deployed) 47' 11" Overall Height 4' 6" 1 20' trailer for storage of parts, tools & safty equipment 2 flow line stands & pipe 4 pipe stands 1 drill string bunker 1 doghouse explosion proof with substructure 1 insulated conex mist tank 2 kelly valves
