0 Gardner Denver FG-FXG Dulex Mud Pump - Sold

Mifflinburg, Pennsylvania USA @ EWD Yard

Sold

Description

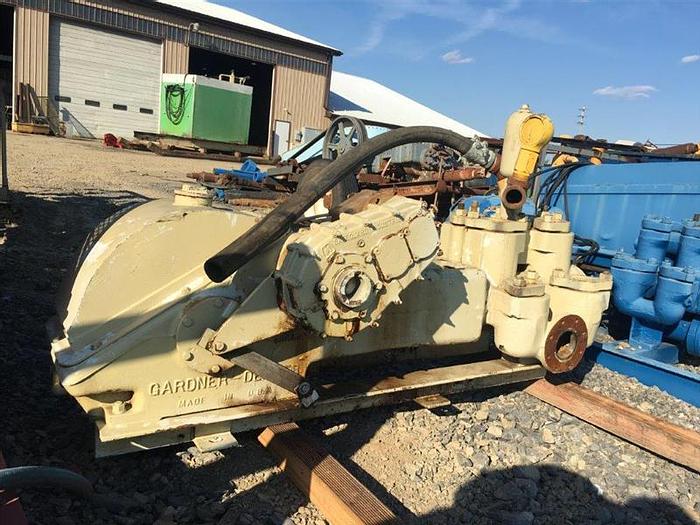

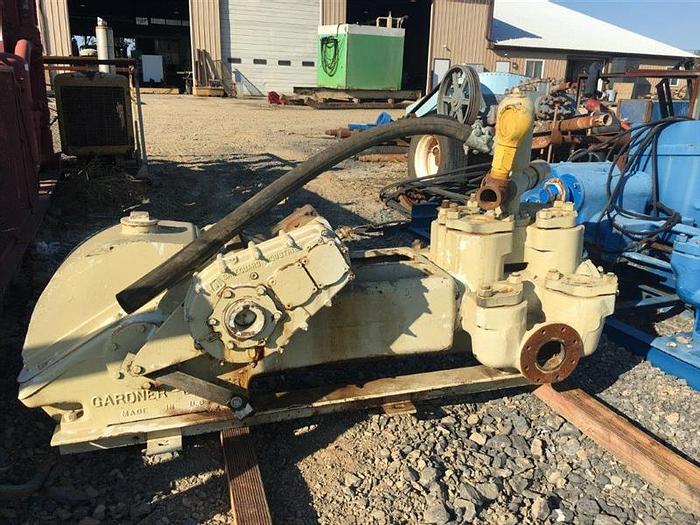

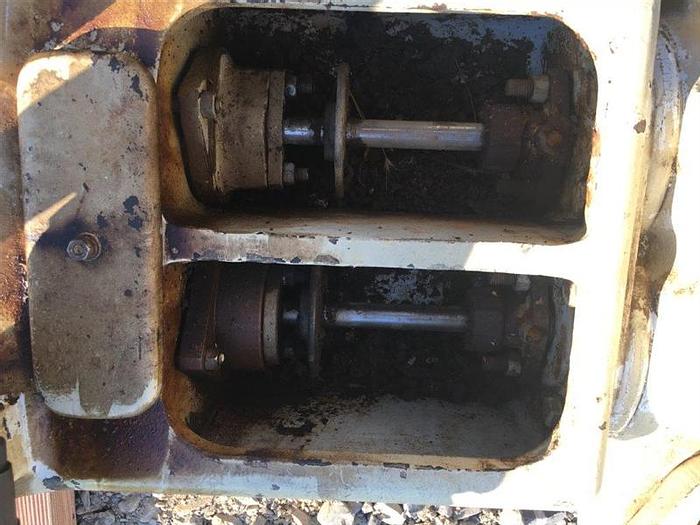

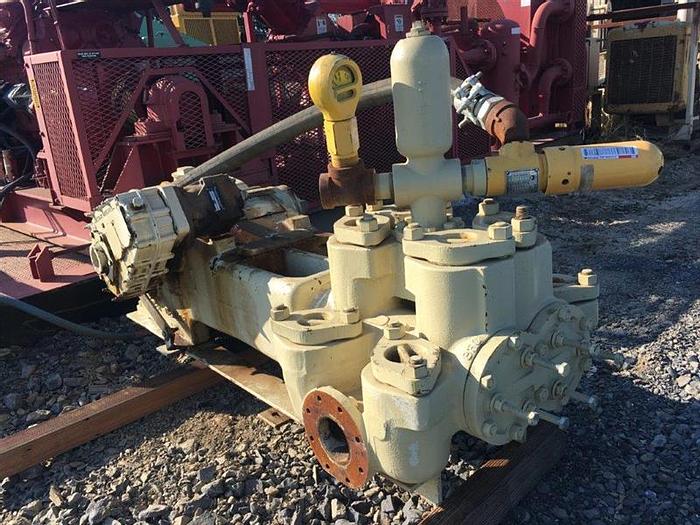

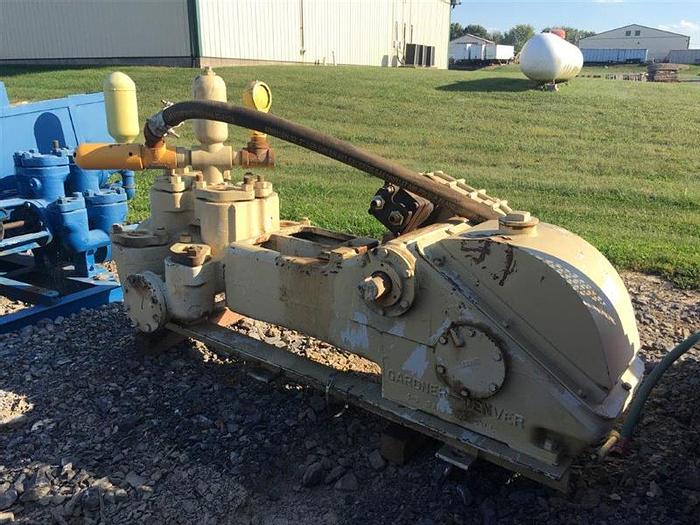

Sold Gardner Denver FG-FXG 5x6 Duplex Mud Pump Hydraulic Drive FXGAABBFCF8 FXG (FG-FXG) DUPLEX POWER PUMP Hydraulically powered, complete with Gearbox and M4D46401 Hydraulic Motor Surge Chamber & Pop-off valve included Only used for a short time since rebuild Maximum BHP:  Mud Service: 32 (24 kw),  Ind'l. Service: 42.5 (32 kw) Maximum Jackshaft RPM: Mud Service: 354,  Ind'l. Service: 472 Located in Mifflinburg, PA yard USA
Show All

Specifications

ManufacturerGardner Denver
ModelFG-FXG Dulex Mud Pump - Sold
ConditionUsed
Stock Number12859
No. of pistons2
Stroke length6 in. (152 mm)
Piston rod load6,122 lbs. (2,777 kg)
Oil capacity4.5 gal. (17 liters)
Pump weight2,300 lbs. (1,043 kg)
StatusSold
