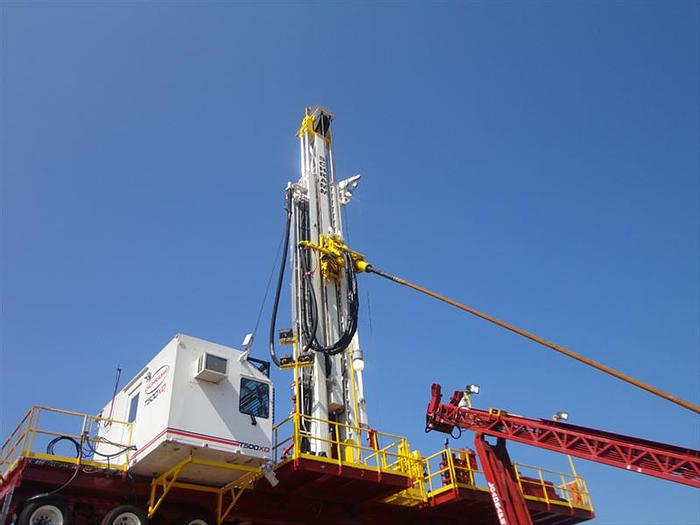

2015 Schramm T500XD Heavy Hoist Drill Rig

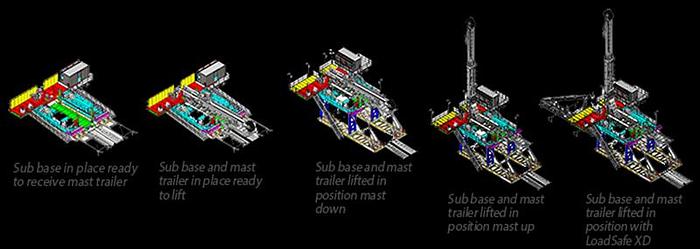

NEW - 2015 SCHRAMM T500XD HEAVY HOIST DRILL RIG DEEP HOLE, TOP DRIVE, Walking Pad Rig 500,000 lbs. (226,796 kg) hook load rig in a portable over the road package 80,000 lbf. (356 kN) hydraulic pulldown for precise weight on bit control Control cabin with joystick controllers for drilling and pipe handling operations Self-erecting in a matter of hours without the use of a crane Power breakout, table and slips maximize safety on the drill floor LoadSafe XD hands-free Range III pipe handling system included (2) MTU 12V-2000 engines, 760 bhp (567 kw) @ 1,800 rpm with electric start (2) Dual core, side by side cooling package, 130°F (54.4°C) ambient rating (2) 220 gallon (930 l) diesel fuel tanks (2) Hydraulic pump systems, with each including (8) piston pumps (1) gear type pump (1) 1,000 gallon (3,785 l) hydraulic tank (18) twin element filters Floor Height: 22 ft. (6.7 m) Clearance: 19 ft. (5.8 m) under table bushing Ground Pressure: Power: 950 bhp (708 kw) Rotation Speed: 0-140 RPM 37.5 inch (0.95 m) false table adapter 27.5 inch (0.7 m) Master Bushing 22 ft. (6.7 m) floor height 19 ft. (5.79 m) under table clearance Built-in holding clamps with variable capacity from 4 - 24 inches (10 – 61 cm) allow for make-up or break-out of tool joints from the top drive spindle Capacity: Range III Maximum Lift Capacity: 10,000 lbs. (4,536 kg) Average Trip Time: 1,500+ f/h (457+ m/h ) Hydraulic jib boom swing and extend Water injection system, 35 gpm (132.4 lpm) @ 1,000 psi (69 bar) DTH lubricator up to 5 gph (19 lph) @ 1,000 psi (69 bar) Air manifold for air drilling operations Air/mud fluid lines, 4 inch (10 cm) stand pipe and traveling hose for 5,000 psi (345 bar) operation Explosion proof 240V lighting for nighttime operation (customer supplied generators) BOP handling system, carriage and trolley rated 40,000 lbs. (18,144 kg)
