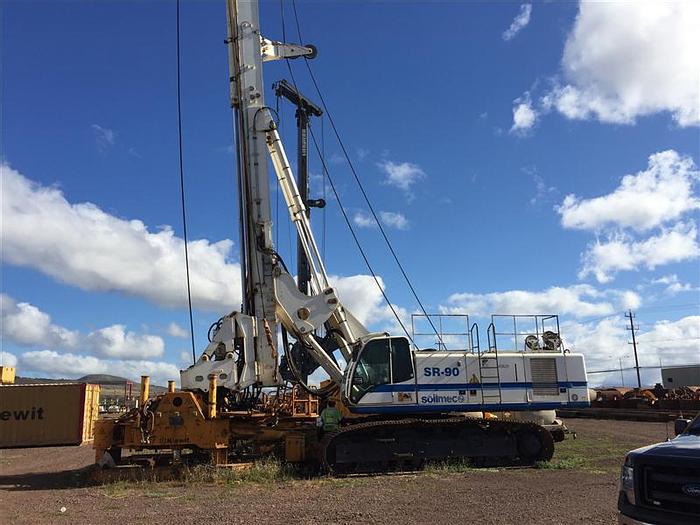

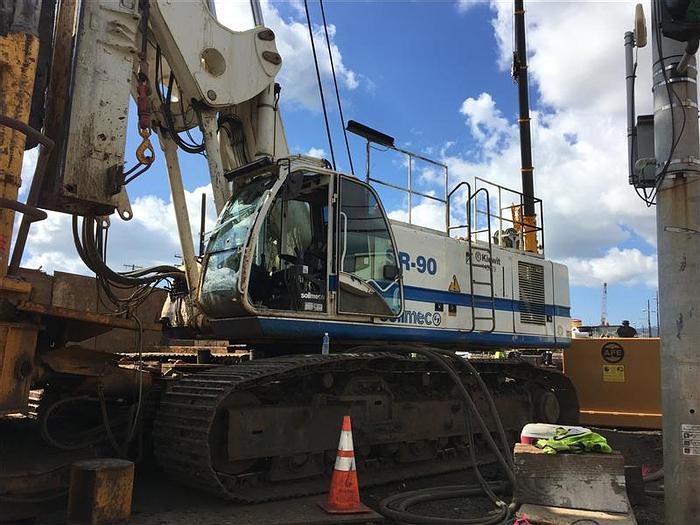

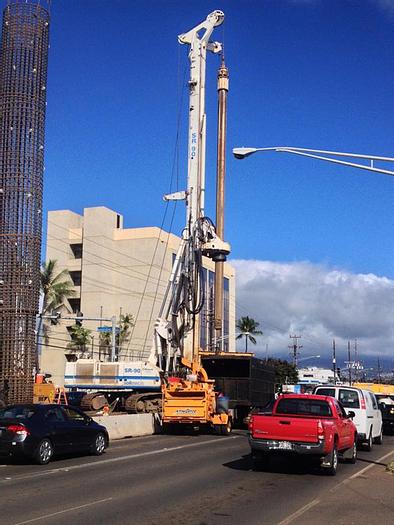

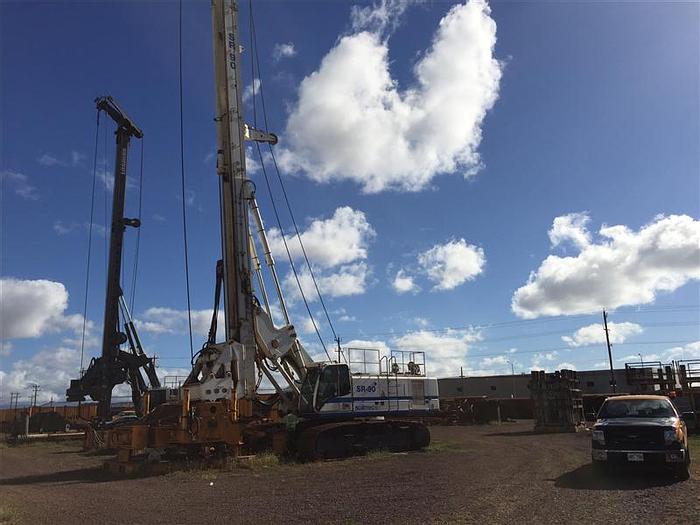

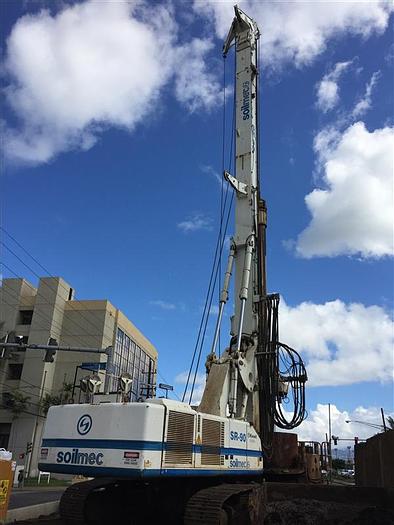

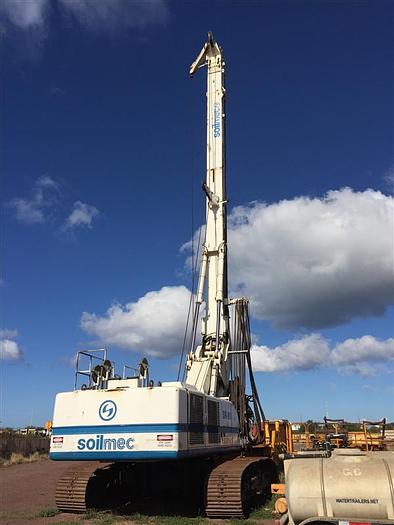

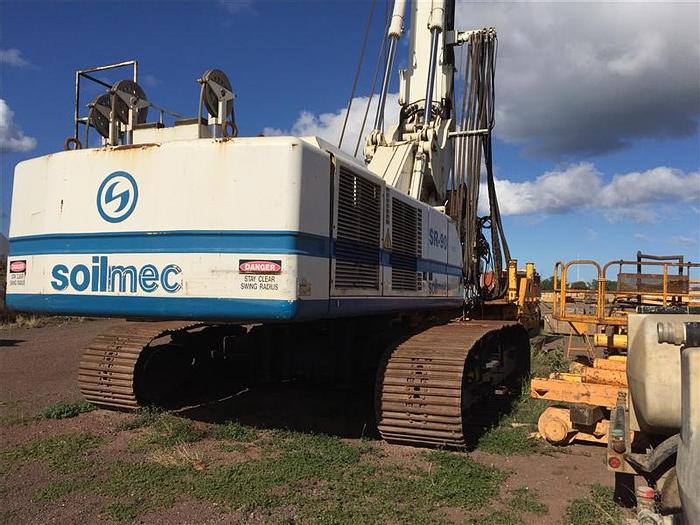

2009 Soilmec SR90 Hydraulic Drilling Rig

2009 Soilmec SR90 Hydraulic Drilling Rig Champion Locking Kelly Bar large diameter pile pull down cylinder configuration maximum drilling diameter 2,500-3,000 mm maximum drilling depth 77 m rig total height approximately 25.0 m undercarriage extendible from 3,400 to 5,000 mm track pad 900 mm wide 360-degree rotation turret width 3,200 mm hydraulic power pack Deutz diesel engine 2015 8 V Tier III operator's cab air conditioning SW-320 Soilmec hydraulic winch SW-140 service winch reinforced boxed steel mast lifting/side racking jacks hydraulic rotary table 483 mm (19 in) diameter o.d. kelly bar slide-pad mounted cradle c/w (4) hydraulic motors maximum nominal torque 333 kNm maximum drilling speed 26 rpm 32 mm diameter rope assembly for main winch 26 mm (1.02 in) diameter rope assembly for auxiliary winch cylinder crowd system maximum pull down force on kelly 180 kN maximum pull down/up force on casing 318/322 kN maximum stroke 6.5 m Kelly guide head kelly swivel inclinometer depth meter 483 mm diameter (19 in) telescopic kelly friction type; 5 x 15.5m (50.8 ft) maximum depth 72.2 m (236 ft) 200 x 200 mm (7.88 x 7.88 in) square tool connection Located in Eastern Region, USA
