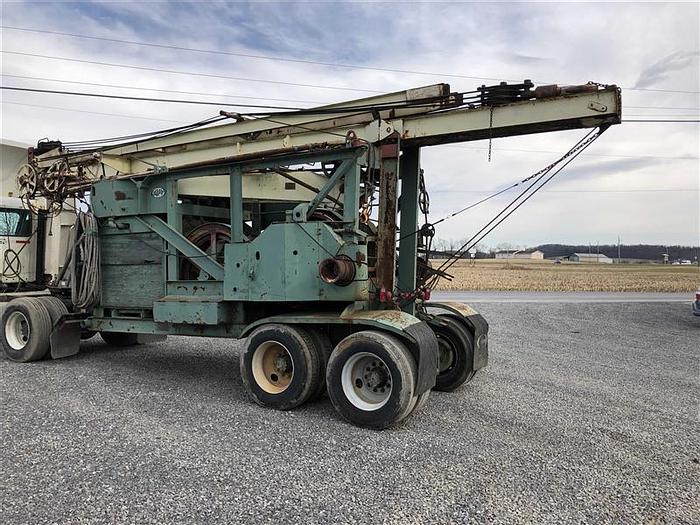

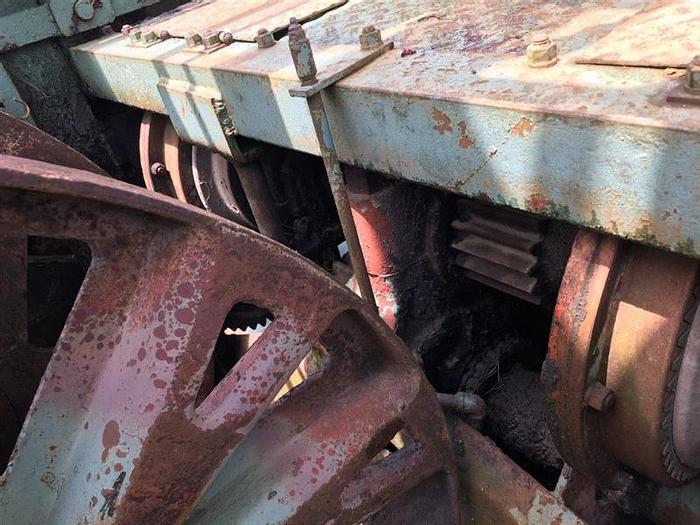

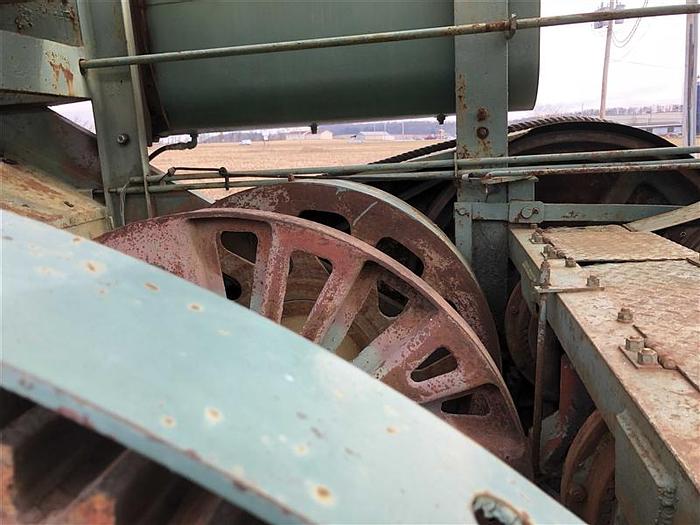

0 Bucyrus Erie 36L SERIES II “NEW STYLE” Cable Tool Rig

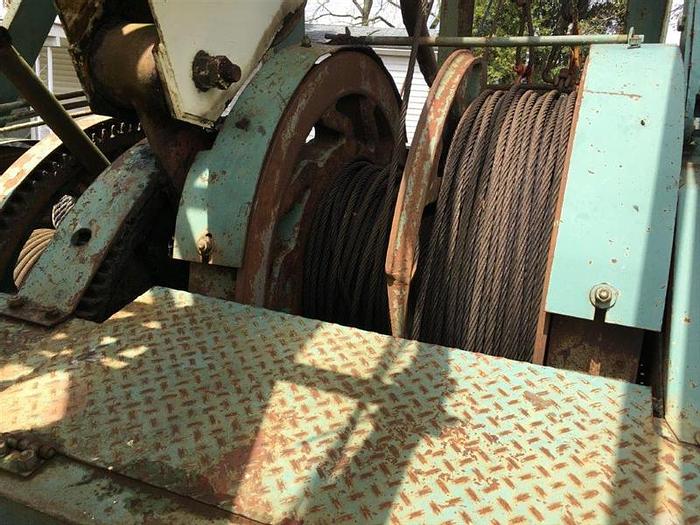

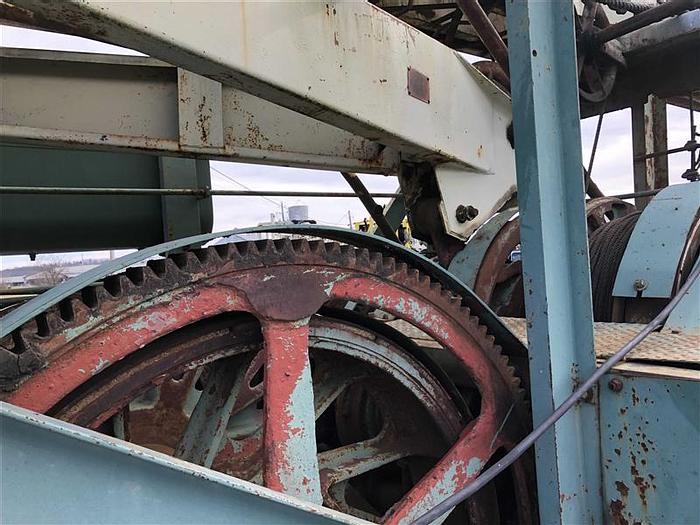

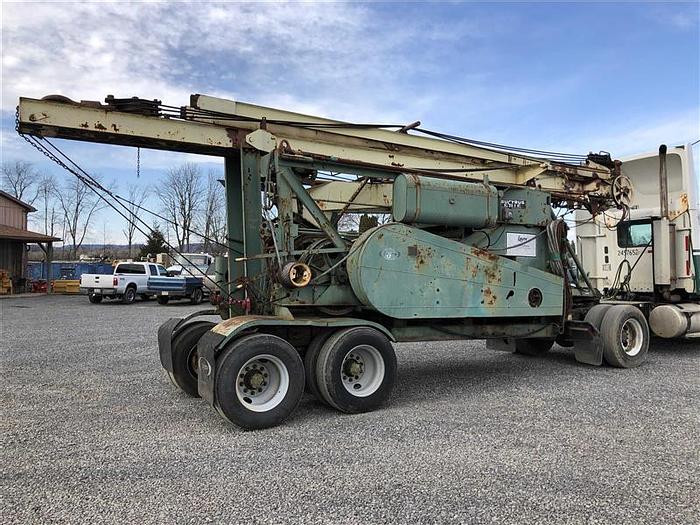

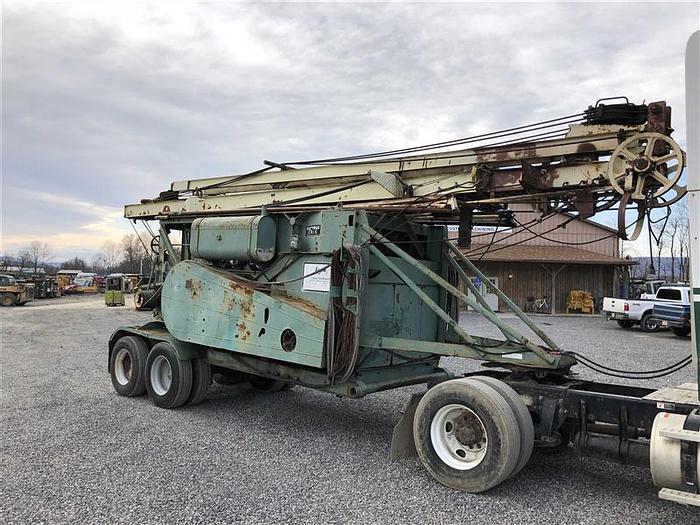

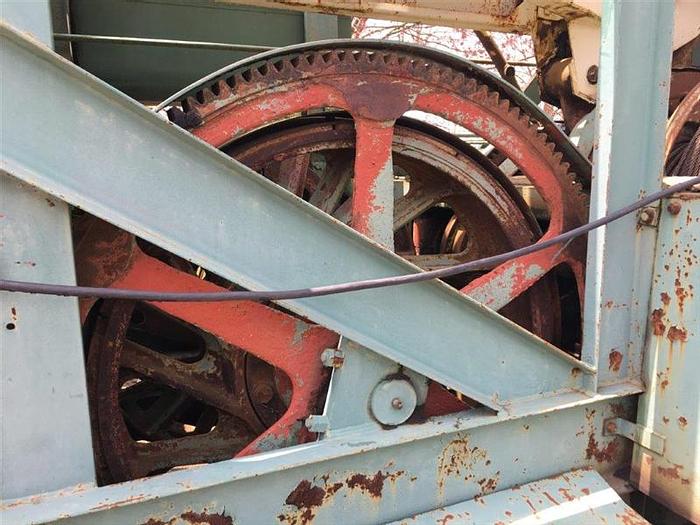

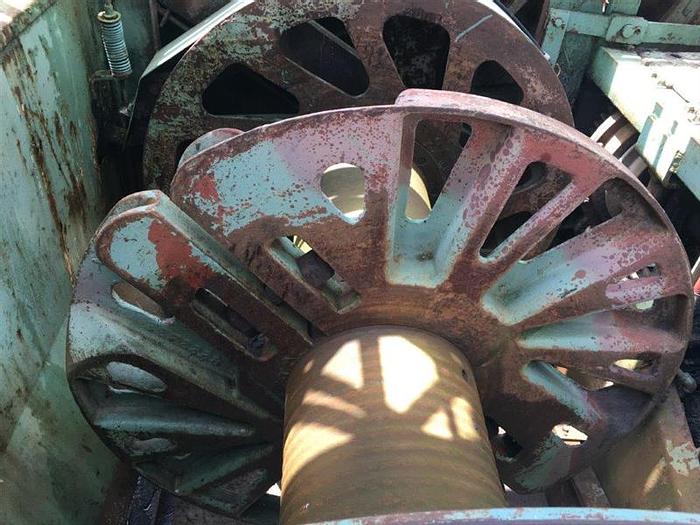

Mounted on a Trailer - FIFTH WHEEL TOWABLE TANDEM AXLE SERIAL #125763 CUMMINS 230 DIESEL ENGINE (NO DRILL TOOLING INCLUDED) STAND 60-FOOT DERRICK…POWER HOISTED DERRICK REACHES 60 FEET HIGH (18.3M) TELESCOPES TO 33’10” (10.3 M) FOR MOVING. POWER PLUS…EQUIPPED WITH DIESEL ENGINE RATED TO DELIVER 146 HP (109 KW) AT 1,750 RPM FULL LOAD SPEED. HEAVY LOADS…INCLUDES CASING TACKLE STRUT AND AUXILLARY A-FRAME LEG FOR HEAVY CASING LOADS. FAST HOISTING…AVERAGE HOISTING SPEED FOR BULL REEL IN HIGH GEAR IS 426 FPM (129.8 MPM); FOR SAND REEL, 1,105 FPM (336.8 MPM); -AND FOR CALF REEL, 372 FPM (113.4 MPM). FORWARD & REVERSE SPEEDS ON ALL REELS. HIGH-CAPACITY CLUTCHES FULL AUTOMATIC SPOOLING DIMENSIONS: LENGTH, DERRICK, SEMI-TRAILER - 34’0’ / 10.4 M HEIGHT, DERRICK, SEMI-TRAILER - 12’7” / 3.8 M WIDTH - 8’4” / 2.5 M WEIGHT of DIESEL-SEMI-TRAILER MOUNTED - 35,800 LBS /16.239 KG BULL REEL CAPACITIES: LINE PULL (LOW GEAR) - 38,750 LBS / 17.577 KG LINE PULL (HIGH GEAR) - 20,700 LBS / 9.389 KG WORKING SIDE CAPACITY - 4860’ OF 7/8” LINE (1481.3 M OF 22 MM) SAND REEL CAPACITIES: LINE PULL (LOW GEAR) - 15,430 LBS / 6.999 KG LINE PULL (HIGH GEAR) - 8,275 LBS / 3.754 KG WORKING SIDE CAPACITY-4700’ OF 9/16” LINE (1432.6 M OF 14 MM) CALF REEL CAPACITIES: LINE PULL (LOW GEAR) - 26,200 LBS / 11.884 KG LINE PULL (HIGH GEAR) - 13,950 LBS / 6.382 KG SPOOL CAPACITY 680’ OF 1” LINE (207.3 M OF 25 MM) HAND WHEEL FOR SPOOLING DEVICE. POSITIVE CAM-CONTROL OF ENGINE THROTTLE. BULL REEL BRAKE LEVER. CASING REEL BRAKE. REVERSE CLUTCH LEVER.
