2005 Pitman Track Drill
Description

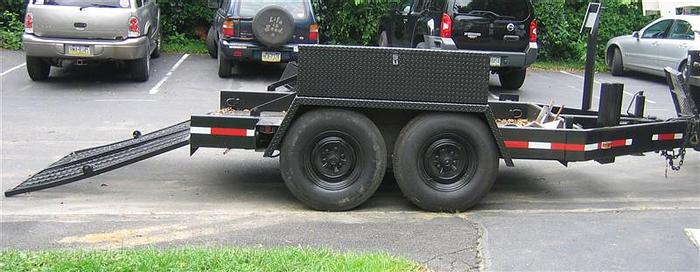

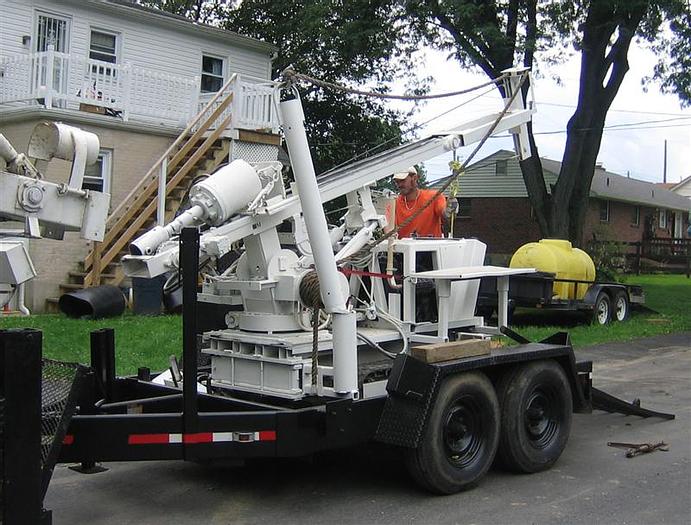

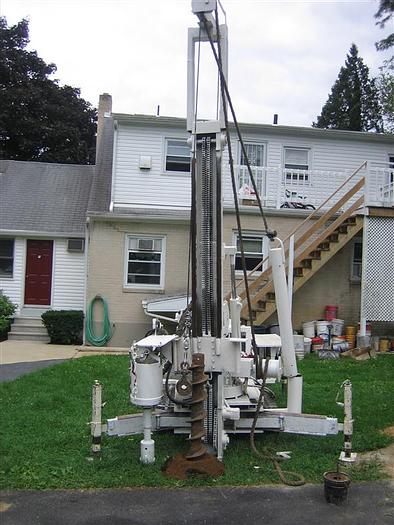

2005 Pitman Track Drill and Trailer A compact self-contained unit high torque low rotation speed auger drive and rock core Comes with 5’ conventional rock core barrel. Comes with separate quick connect hydraulic motor - can used for coring or auger drilling Standard 140lb cathead driven safety hammer with 30 inch drop. 4 manual crank leveling jacks that attach to swing out arms on each corner of the drill A mounted vise to assist with opening sample spoons. Overall tower height is 13’and the drill head travel is 76”. Overall length is approximately 13’ with a track base length of 86” and width is 61”. Has a Kubota 3 cylinder 16HP engine running a cross brand 10gpm hydraulic pump. Full rubber tracks have about 25% life remaining on them. The right final drive motor was resealed along with the final drive gear assembly. Drill currently using 3.25” hollow stem augers, drilling to about 20’ with normal conditions. Trailer is a Pitman 10,000 lb capacity double axle trailer with lights and electric brakes. The trailer uses a pintle hitch and 7-way flat pin connector for hook up to a truck. Maximum depth unknown; past owner has been down to only approximately 20 ft. depth Located in Eastern Region, USA
Specifications
Manufacturer | Pitman |
Model | Track Drill |
Year | 2005 |
Condition | Used |
Stock Number | 13523 |
Hours | 1068 |
Status | Sold |
